Siyi is one of professional China Frameless Touch Monitor manufacturer and supplier, if you are looking for the Frameless Touch Monitor with low price, consult us now! Front Double Layer Design Pcap Touch Screen Monitor
Send Inquiry
Product Description
Siyi is a reputable Chinese manufacturer and supplier with years of experience specializing in Frameless Touch Monitor production. We hope to establish commercial ties with you.
Specifications
|
Model |
CTM101DR002 |
CTM156DR002 |
CTM215DR002 |
|
|
Housing |
Material |
rugged 1.2-1.5mm thickness aluminum |
||
|
|
Color |
Black powder coating |
||
|
Display |
Screen size |
10.1 inch |
15.6 inch |
21.5 inch |
|
Resolution |
1280(RGB)×800 [WXGA] 149PPI |
1366(RGB)×768 WXGA 100PPI |
1920(RGB)×1080, FHD, 102PPI |
|
|
Brightness |
400 (Typ.) |
400 cd/m² (Typ.) |
350 cd/m² (Typ.) |
|
|
Support color |
16.7M , 50% NTSC |
16.2M , 70% NTSC |
16.7M |
|
|
Contrast |
800 : 1 (Typ.) |
500:1 (Typ.) |
1000:1 (Typ.) (TM) |
|
|
Viewing angle |
85/85/85/85 (Typ.)(CR≥10) |
85/85/80/80 (Typ.)(CR≥10) |
89/89/89/89 (Typ.)(CR≥10 |
|
|
Lamp Type |
3S11P WLED , 30K hours |
WLED , 50K hours |
WLED , 30K hours |
|
|
Touch screen |
Type |
Projected capacitive touch screen |
||
|
Point of touch |
10 point touch screen |
|||
|
Light transmittance |
>93% |
|||
|
Surface Hardness |
7H |
|||
|
IC |
EETI |
|
|
|
|
Lifetime |
Unlimited |
|
|
|
|
Input Video |
VGA |
Analog RGB (0.7vp-p), row field synchronous separation (TTL) |
||
|
DVI |
TMDS |
|
|
|
|
HDMI |
HDMI V1.4 Adobe color space |
|||
|
Support Mode |
Multi |
DOS, VGA, SVGA, XGA, SXGA+, UXGA, WXGA, WXGA+,WSXGA, WSXGA+, WUXGA etc |
||
|
Speakers |
built-in |
2*2W speakers |
||
|
OSD menu |
Full function |
Brightness, contrast, auto correction, phase, clock, field position, function setting, reset |
||
|
Languages |
Simplified Chinese, traditional Chinese, English, French, German, Italian |
|||
|

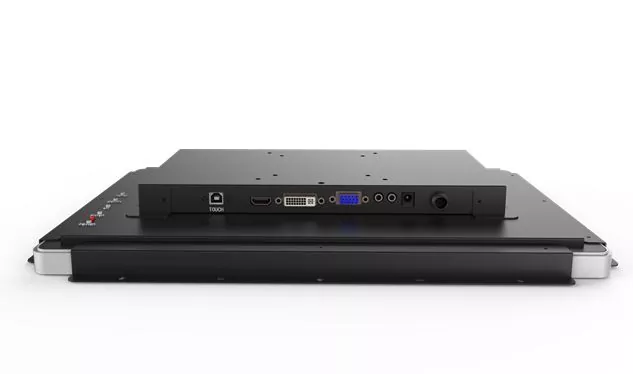

External I/O |
VGA |
1 |
||
|
HDMI |
1 |
|||
|
DVI |
1 |
|||
|
USB Type B |
1(for touch screen) |
|
|
|
|
PC Audio |
1 |
|
|
|
|
Power connector |
DC 12V |
|||
|
Safety |
pass |
CE / FCC/ROHS |
||
|
Power |
Power supply voltage |
DC 12V |
DC 12V |
DC 12V |
|
Power consumption(Typical) |
10W |
10W |
22W |
|
|
Environment |
Working temperature(℃) |
-10℃~60℃ |
||
|
Working humidity(RH) |
10% - 90% |
|||
|
Others |
Support O/S |
Windows, Linux, Mac, Android |
||
|
Mount |
Frame Mount&VESA 100 |
|||
Ordering lnformation
|
Part Number |
Description |
|
CTM101DR002-V1 |
10.1" Rugged Front Frame Mount Touch Screen Monitor with Pcap 10 points touch screen, IP65 Front, HDMI/DVI/VGA, 12V DC in |
|
CTM156DR002-V1 |
15.6" Rugged Front Frame Mount Touch Screen Monitor with Pcap 10 points touch screen, IP65 Front, HDMI/DVI/VGA, 12V DC in |
|
CTM215DR001-V1 |
21.5" Rugged Front Frame Mount Touch Screen Monitor with Pcap 10 points touch screen, IP65 Front, HDMI/DVI/VGA, 12V DC in |
