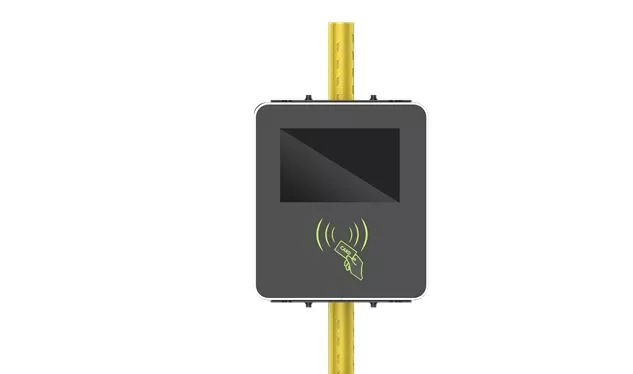

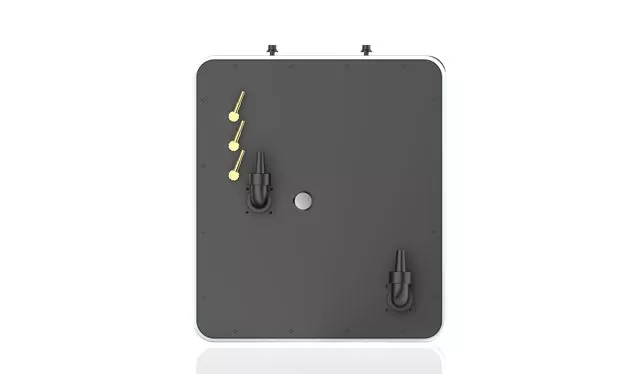

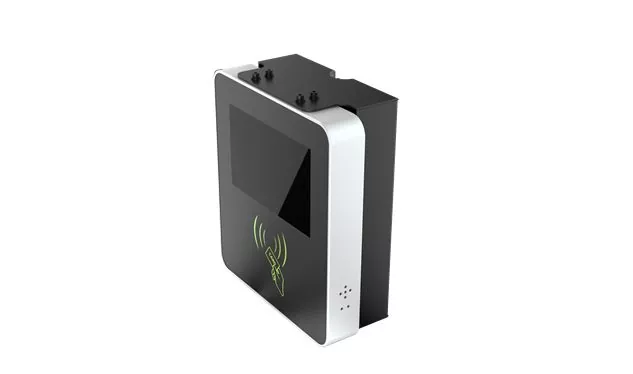

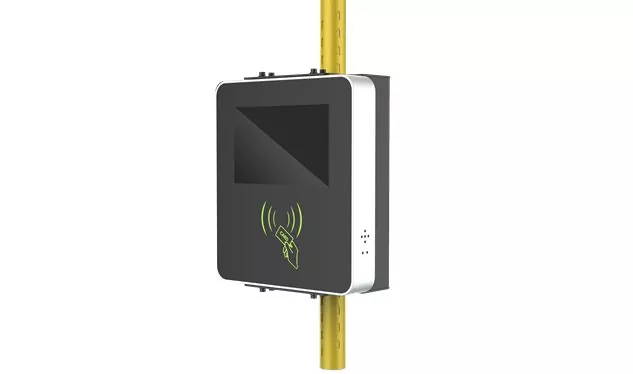

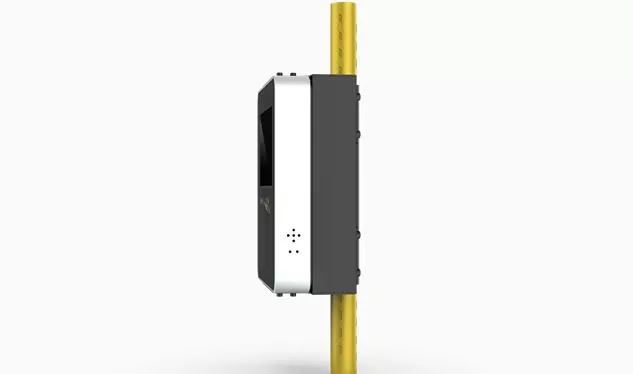

IP65 Validator with NFC

Model

CATPC070DR004

CATPC101DR004

Processor system

CPU

Six-Core ARM® 64-bit processor

Frequency

 2.0 GHz

SOC

Rockchip RK3399 (28nm HKMG Process)

GPU

Technology

ARM Mali-T860 MP4 Quad-Core GPU

Capability

Completely compatible with OpenGL ES1.1/2.0/3.0/3.1, OpenCL and DirectX 11.1

AFBC

Support

Display

Screen size

7 inch

10.1 inch

Resolution

1280(RGB)×800, WXGA, 217PPI

1280(RGB)×800 WXGA 149PPI

Brightness

400 cd/m² (Typ.)

400 cd/m² (Typ.)

Support color

16.7M , 50% NTSC

16.7M , 50% NTSC

Contrast

800:1

800:1

Viewing angle

88/88/88/88 (Typ.)(CR≥10)

85/85/85/85 (Typ.)(CR≥10)

Lamp Type

WLED, 30K hours

WLED, 30K hours

Touch screen

Type

Pcap touch screen

Point of touch

10 point touch screen

Light transmittance

>93%

Surface Hardness

7H

Memory

Technology

Dual-Channel DDR3

max

32GB

Network

Ethernet

10/100/1000Mbps Ethernet

WIFI

2.4GHz/5GHz dual band WIFI, supports Wi-Fi 802.11b/g/n/ac

Bluetooth

V2.1+EDR/Bluetooth 3.0/3.0+HS/4.0

4G

LTE-TDD/LTE-FDD/TD-SCDMA/EDGE/GPRS/GSM(optional)

Audio

Connector

1 x Analog audio (via 3.5mm Combo Audio Jack for audio input and ouput)

1 x LINEOUT for audio output

Built-in I/O Interface

USB

6*USB-2.0 HOST , 1*USB3.0 HOST , 1*USB3.0 Type_C

HDMI

1*HDMI IN

PCIe

1*Mini PCIe( 4G LTE) , 1*PCIe_1.27 host

SIM

1*SIM card slot

Press buttons

1*Reset, 1*Power, 1*Upgrade

Serial connectors

4*RS232 , 1*UART TTL

IO

4*IO

Wigan interface

2*Wigan

Watchdog

Type

 support software watch dog

Built-in features

NFC

*Model: ACR1281U-K1, USB 2.0 Full Speed Interface
USB HID Keyboard Class
Contactless Card Support:
Read/write speed of up to 848 kbps
Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
Supports ISO 14443 Part 4 Type A and B cards and MIFARE series
Built-in anti-collision feature (only one tag is accessed at any time)
USB Firmware Upgradability

4G

EC-25E

Power

Power supply voltage

DC 8V-36V

DC 8V-36V

Power consumption(Typical)

25W

30W

Environment

Working temperature(℃)

0℃~50℃

Working humidity(RH)

5%~90%

Others

Operating system

Android 7.1 , Ubuntu 16.04 , u-boot

Part Number

Description

CATPC070DR004-V1

7" IP65 Rugged Android Touch Screen Tablet with RK3399 Six-Core ARM® 64-bit processor, built-in NFC/4G

CATPC101DR004-V1

10.1" IP65 Rugged Android Touch Screen Tablet with RK3399 Six-Core ARM® 64-bit processor, built-in NFC/4G
