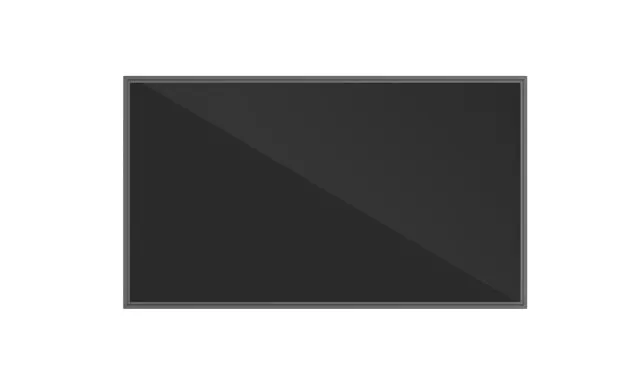

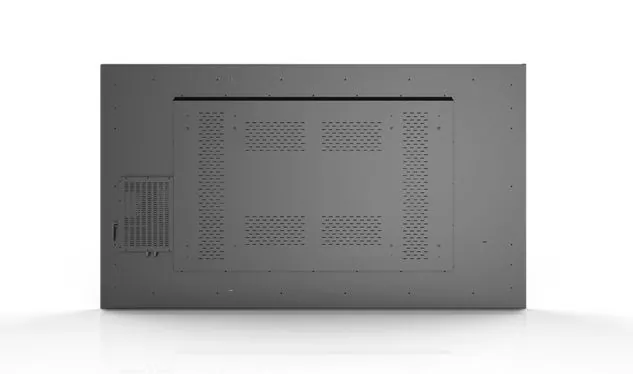

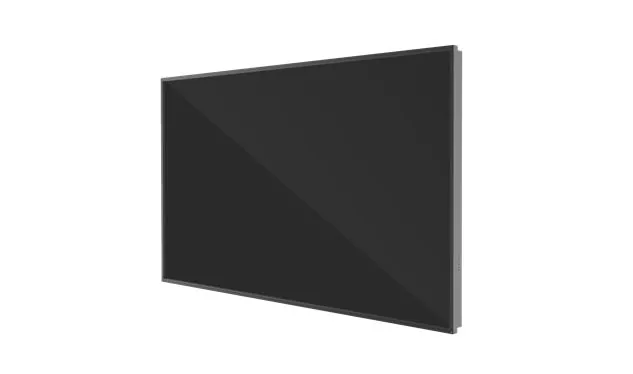

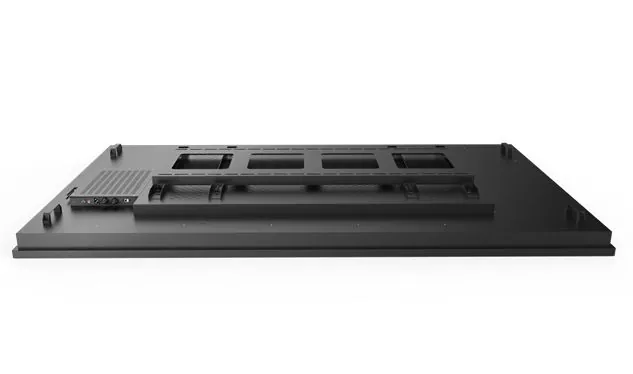

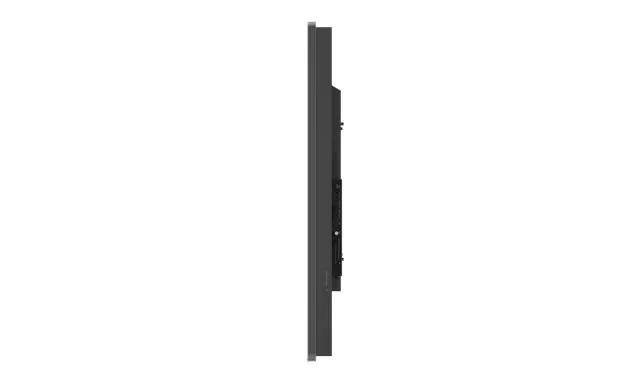

Giant Android Touch Tablet
You are welcomed to come to our factory to buy the latest selling, low price, and high-quality Giant Android Touch Tablet, Siyi looks forward to cooperating with you. 86"/98" Wall Mount IR Multi Touch Tablet
Send Inquiry
Product Description
Siyi invites you to visit our factory to purchase the newest, best-selling, affordable, and high-quality Giant Android Touch Tablet. We are looking forward to working with you.
Specifications
|
Model |
CATPC086HW101 |
CATPC086HW101 |
|
|
Processor system |
CPU |
Six-Core ARM® 64-bit processor |
|
|
Frequency |
2.0 GHz |
||
|
SOC |
Rockchip RK3399 (28nm HKMG Process) |
||
|
GPU |
Technology |
ARM Mali-T860 MP4 Quad-Core GPU |
|
|
Capability |
Completely compatible with OpenGL ES1.1/2.0/3.0/3.1, OpenCL and DirectX 11.1 |
||
|
AFBC |
Support |
||
|
Display |
Screen size |
86 inch |
98 inch |
|
Resolution |
3840(RGB)×2160 UHD 51PPI |
3840(RGB)×2160 UHD 45PPI |
|
|
Brightness |
500 cd/m² (Typ.) |
500 cd/m² (Typ.) |
|
|
Support color |
16.7M/1.07B , 71% NTSC |
1.06B , 72% NTSC |
|
|
Contrast |
1200:1 |
1300:1 |
|
|
Viewing angle |
89/89/89/89 (Min.)(CR≥10) |
89/89/89/89 (Min.)(CR≥10) |
|
|
Lamp Type |
WLED, 30K hours |
WLED, 50K hours |
|
|
Touch screen |
Type |
IR touch screen |
|
|
Point of touch |
10 point touch screen |
||
|
Light transmittance |
>93% |
||
|
Surface Hardness |
7H |
||
|
Memory |
Technology |
Dual-Channel DDR3 |
|
|
max |
32GB |
||
|
Network |
Ethernet |
10/100/1000Mbps Ethernet |
|
|
WIFI |
2.4GHz/5GHz dual band WIFI, supports Wi-Fi 802.11b/g/n/ac |
||
|
Bluetooth |
V2.1+EDR/Bluetooth 3.0/3.0+HS/4.0 |
||
|
4G |
LTE-TDD/LTE-FDD/TD-SCDMA/EDGE/GPRS/GSM(optional) |
||
|
Audio |
Connector |
1 x Analog audio (via 3.5mm Combo Audio Jack for audio input and ouput) |
|
|
1 x LINEOUT for audio output |
|||
|
Built-in I/O Interface |
USB |
6*USB-2.0 HOST , 1*USB3.0 HOST , 1*USB3.0 Type_C |
|
|
HDMI |
1*HDMI IN |
||
|
PCIe |
1*Mini PCIe( 4G LTE) , 1*PCIe_1.27 host |
||
|
SIM |
1*SIM card slot |
||
|
Press buttons |
1*Reset, 1*Power, 1*Upgrade |
||
|
Serial connectors |
4*RS232 , 1*UART TTL |
||
|
IO |
4*IO |
||
|
Wigan interface |
2*Wigan |
||
|
Watchdog |
Type |
support software watch dog |
|
|
Power |
Power supply voltage |
100V-240V |
100V-240V |
|
Power consumption(Typical) |
250W |
480W |
|
|
Environment |
Working temperature(℃) |
0℃~50℃ |
|
|
Working humidity(RH) |
5%~90% |
||
|
Others |
Operating system |
Android 7.1 , Ubuntu 16.04 , u-boot |
|
Ordering lnformation
|
Part Number |
Description |
|
CATPC086HW101-V1 |
86 Inch Wall Mount IR 10-point Android Touch Tablet with RK3399 Six-Core ARM® 64-bit processor |
|
CATPC098HW101-V1 |
98 Inch Wall Mount IR 10-point Android Touch Tablet with RK3399 Six-Core ARM® 64-bit processor |
