Outdoor Digital Signage

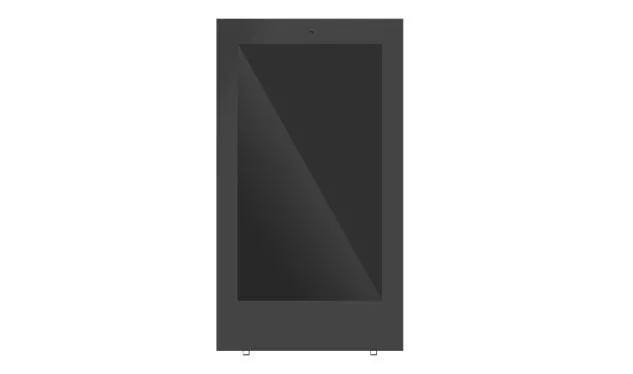

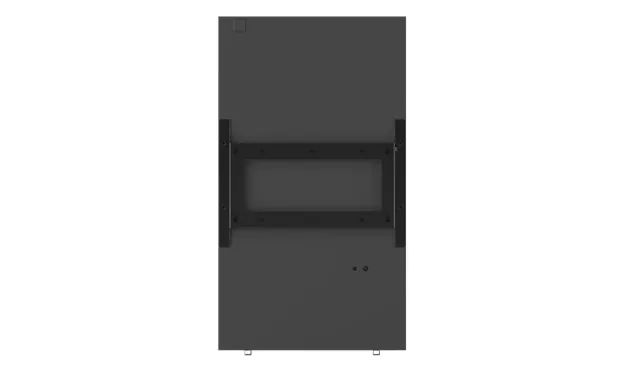

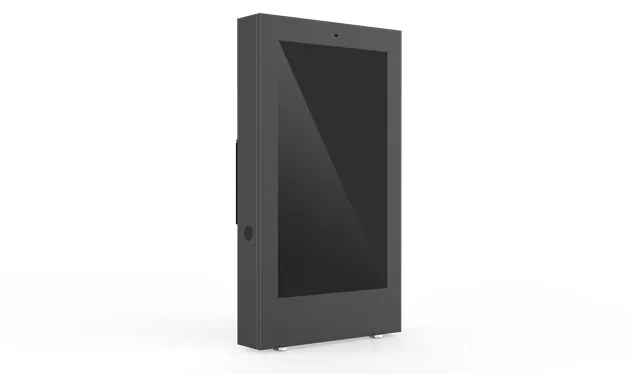

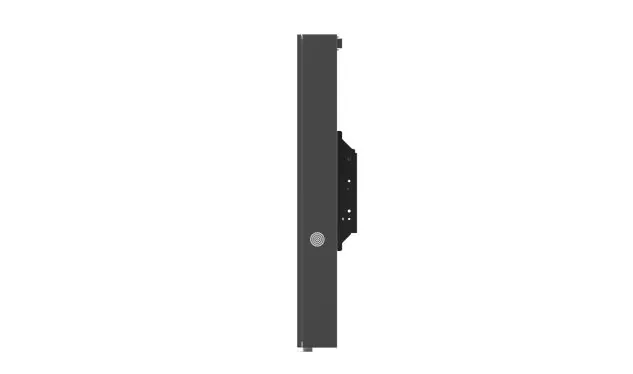

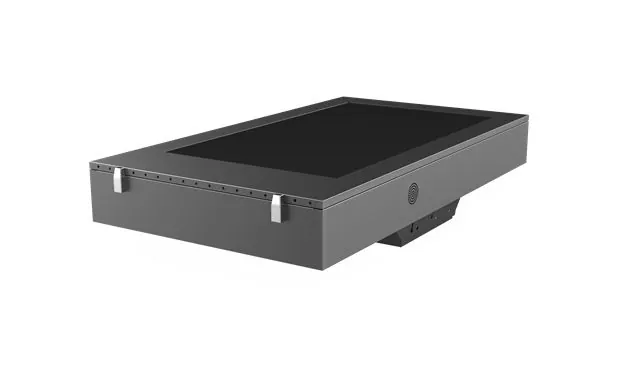

Siyi, a reputable manufacturer in China, is willing to offer you Outdoor Digital Signage. We promise to provide you with the best after-sale support and prompt delivery. IP54 High Brightness Digital Touch Signage
Send Inquiry
Product Description
As one of professional manufacturer in China, Siyi would like to provide you Outdoor Digital Signage. And we will offer you the best after-sale service and timely delivery.
Specifications
|
Model |
CHW032DR102 |
CHW042DR102 |
CHW055DR102 |
|
|
Processor system |
CPU |
Six-Core ARM® 64-bit processor |
||
|
Frequency |
2.0 GHz |
|||
|
SOC |
Rockchip RK3399 (28nm HKMG Process) |
|||
|
GPU |
Technology |
ARM Mali-T860 MP4 Quad-Core GPU |
||
|
Capability |
Completely compatible with OpenGL ES1.1/2.0/3.0/3.1, OpenCL and DirectX 11.1 |
|||
|
AFBC |
Support |
|||
|
Display |
Screen size |
32 inch |
42 inch |
55 Inch |
|
Resolution |
1920(RGB)×1080 |
1920(RGB)×1080 |
1920(RGB)×1080 |
|
|
Brightness |
2000 cd/m² (Typ.) |
2000 cd/m² (Typ.) |
2000 cd/m² (Typ.) |
|
|
Support color |
16.7M |
16.7M |
1.07B |
|
|
Contrast |
1200:1 |
4000:1 |
5000:1 |
|
|
Viewing angle |
89/89/89/89 (Min.)(CR≥10) |
88/88/88/88 (Min.)(CR≥10) |
89/89/89/89 (Min.)(CR≥10) |
|
|
Lamp Type |
WLED, 30K hours |
WLED, 30K hours |
WLED, 30K hours |
|
|
Touch screen |
Type |
NAMI capacitive touch screen |
||
|
Point of touch |
10 point touch screen |
|||
|
Light transmittance |
>93% |
|||
|
Surface Hardness |
7H |
|||
|
Memory |
Technology |
Dual-Channel DDR3 |
||
|
max |
32GB |
|||
|
Network |
Ethernet |
10/100/1000Mbps Ethernet |
||
|
WIFI |
2.4GHz/5GHz dual band WIFI, supports Wi-Fi 802.11b/g/n/ac |
|||
|
Bluetooth |
V2.1+EDR/Bluetooth 3.0/3.0+HS/4.0 |
|||
|
4G |
LTE-TDD/LTE-FDD/TD-SCDMA/EDGE/GPRS/GSM(optional) |
|||
|
Audio |
Connector |
1 x Analog audio (via 3.5mm Combo Audio Jack for audio input and ouput) |
||
|
1 x LINEOUT for audio output |
||||
|
Built-in I/O Interface |
USB |
6*USB-2.0 HOST , 1*USB3.0 HOST , 1*USB3.0 Type_C |
||
|
HDMI |
1*HDMI IN |
|||
|
PCIe |
1*Mini PCIe( 4G LTE) , 1*PCIe_1.27 host |
|||
|
SIM |
1*SIM card slot |
|||
|
Press buttons |
1*Reset, 1*Power, 1*Upgrade |
|||
|
Serial connectors |
4*RS232 , 1*UART TTL |
|||
|
IO |
4*IO |
|||
|
Wigan interface |
2*Wigan |
|||
|
Watchdog |
Type |
support software watch dog |
||
|
Electric control |
Switch power supply |
Meanwell, Industrial standard |
||
|
Speaker |
Water proof high quality in 10W |
|||
|
Lightning arrester |
3RD LEVEL |
|||
|
Leakage protector |
YES |
|||
|
Timer |
YES |
|||
|
Cooling& Heating |
Cooling |
Intelligent cooling system, the unique design of air duct and motherboard, automatic adjustment of wind speed |
||
|
Intelligent temperature control system, if it senses the temperature of led panel>60 ℃, then it will shut down the power supply of LED panel for a while until LCD screen temperature back to normal |
||||
|
Heating |
Auto heat function for environment temperature <-10℃ |
|||
|
Power |
Power supply voltage |
100V-240V |
100V-240V |
100V-240V |
|
Power consumption(Typical) |
160W |
300W |
400W |
|
|
Environment |
Working temperature(℃) |
-30℃~+50℃ |
||
|
Working humidity(RH) |
5%~95% |
|||
|
Others |
Operating system |
Android 7.1 , Ubuntu 16.04 , u-boot |
||
Ordering lnformation
|
Part Number |
Description |
|
CHW032DR102-V1 |
32 Inch Outdoor High Brightness Capacitive Touch Screen Digital Signage with RK3399 Six-Core ARM® 64-bit processor |
|
CHW042DR102-V1 |
42 Inch Outdoor High Brightness Capacitive Touch Screen Digital Signage with RK3399 Six-Core ARM® 64-bit processor |
|
CHW055DR102-V1 |
55 Inch Outdoor High Brightness Capacitive Touch Screen Digital Signage with RK3399 Six-Core ARM® 64-bit processor |
