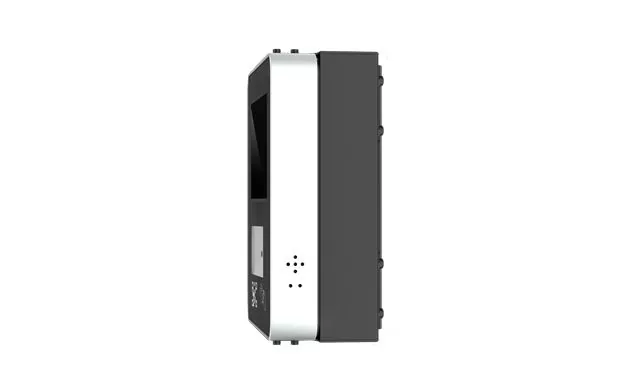

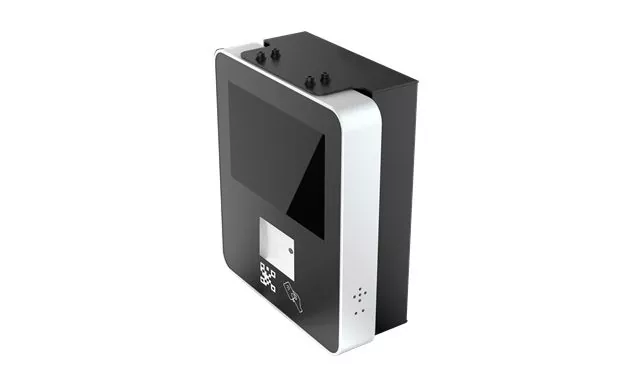

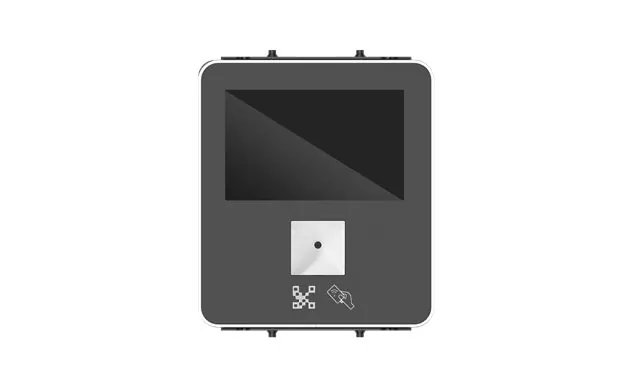

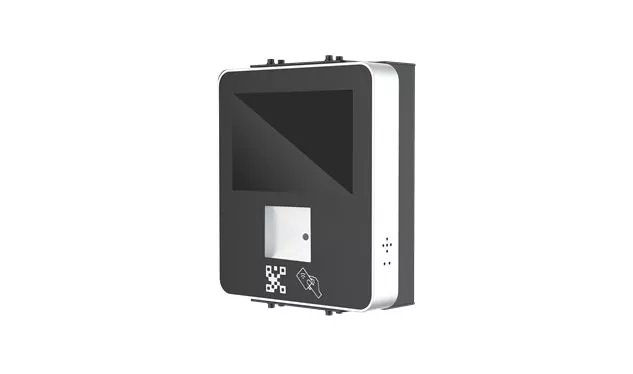

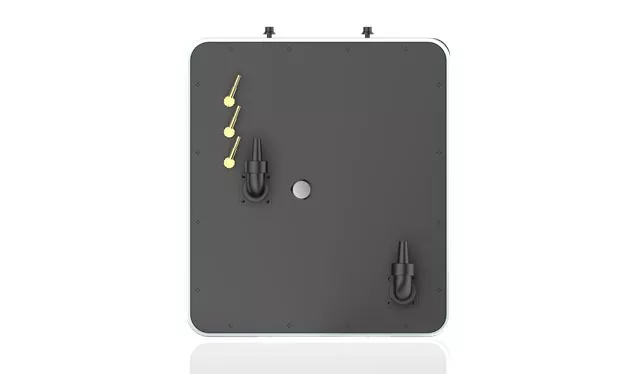

IP65 Validator with QR/RFID

Model

CATPC104DR101

Processor system

CPU

Six-Core ARM® 64-bit processor

Frequency

 2.0 GHz

SOC

Rockchip RK3399 (28nm HKMG Process)

GPU

Technology

ARM Mali-T860 MP4 Quad-Core GPU

Capability

Completely compatible with OpenGL ES1.1/2.0/3.0/3.1, OpenCL and DirectX 11.1

AFBC

Support

Display

Screen size

10.4 inch

Resolution

1024(RGB)×768   [XGA]  123PPI

Brightness

1000 cd/m² (Typ.)

Support color

262K/16.7M

Contrast

900:1

Viewing angle

75/75/75/75 (Typ.)(CR≥10)

Lamp Type

WLED, 50K hours

Touch screen

Type

Pcap touch screen

Point of touch

10 point touch screen

Light transmittance

>93%

Surface Hardness

7H

Memory

Technology

Dual-Channel DDR3

max

32GB

Network

Ethernet

10/100/1000Mbps Ethernet

WIFI

2.4GHz/5GHz dual band WIFI, supports Wi-Fi 802.11b/g/n/ac

Bluetooth

V2.1+EDR/Bluetooth 3.0/3.0+HS/4.0

4G

LTE-TDD/LTE-FDD/TD-SCDMA/EDGE/GPRS/GSM(optional)

Audio

Connector

1 x Analog audio (via 3.5mm Combo Audio Jack for audio input and ouput)

1 x LINEOUT for audio output

Built-in I/O Interface

USB

6*USB-2.0 HOST , 1*USB3.0 HOST , 1*USB3.0 Type_C

HDMI

1*HDMI IN

PCIe

1*Mini PCIe( 4G LTE) , 1*PCIe_1.27 host

SIM

1*SIM card slot

Press buttons

1*Reset, 1*Power, 1*Upgrade

Serial connectors

4*RS232 , 1*UART TTL

IO

4*IO

Wigan interface

2*Wigan

Watchdog

Type

 support software watch dog

Built-in NFC/QR combo

NFC

Support Card: ID Card, NFC Mobile Phone, M1, IC Card

RFID

ID Card 00, Mifare_Ultra Light 01, Mifare_One (S50)02, Mifare_One (S70)03, Mifare_Pro (X)04, Mifare_Desire 05, Mifare_Ultra Light, Mifare_One (S50), Mifare_One (S70), Mifare_Pro (X), Mifare_Desire

Code Read Precision

2D≥7.5mil，1D≥5mil

Symbologies

Conforms to the international and domestic general 2D code standards: QR Code, Data Matrix, PDF417, Chinese sensible code, etc.
Conforms to the international and domestic general 1D code standards: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Coda bar, MSI/MSI PLESSEY, GS1 Data Bar ,etc.

Print Contrast

25% minimum reflectance

Built-in 4G

Model

Quectel EC25

Key Benefits

LTE category 4 module optimized for broadband IoT applications

Worldwide LTE, UMTS/HSPA(+) and GSM/GPRS/EDGE coverage

Standard PCI Express® Mini Card form factor (Mini PCIe) ideal for
manufacturers to easily integrate wireless connectivity into their
devices

MIMO technology meets demands for data rate and link
reliability in modem wireless communication systems

Multi-constellation GNSS receiver available for applications
requiring fast and accurate fixes in any environment

Power

Power supply voltage

AC 100V-240V

Power consumption(Typical)

50W

Environment

Working temperature(℃)

-20℃~50℃

Working humidity(RH)

5%~90%

Others

Operating system

Android 7.1 , Ubuntu 16.04 , u-boot

Part Number

Description

CATPC104DR101-V2

10.4" IP65 Rugged Android Touch Screen Tablet with RK3399 Six-Core ARM® 64-bit processor, built-in NFC/QR combo, built-in 4G, brightness 1000nit
