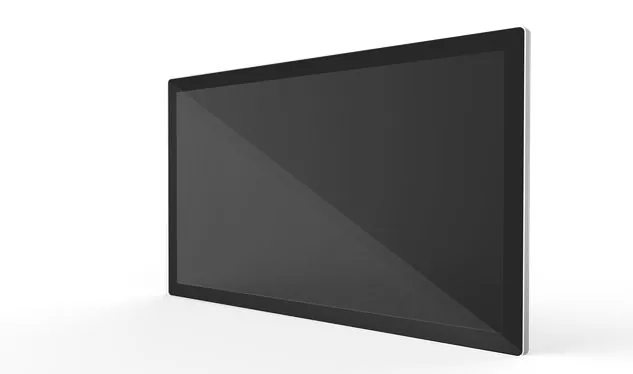

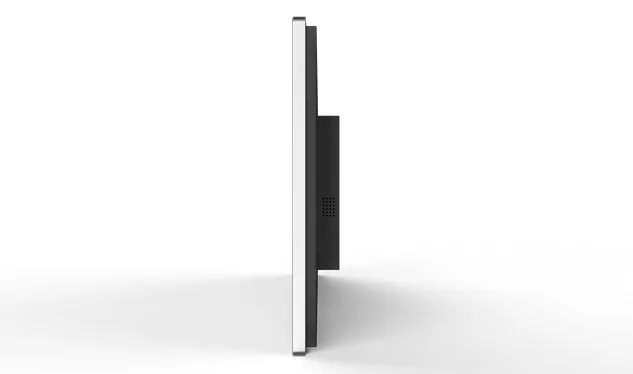

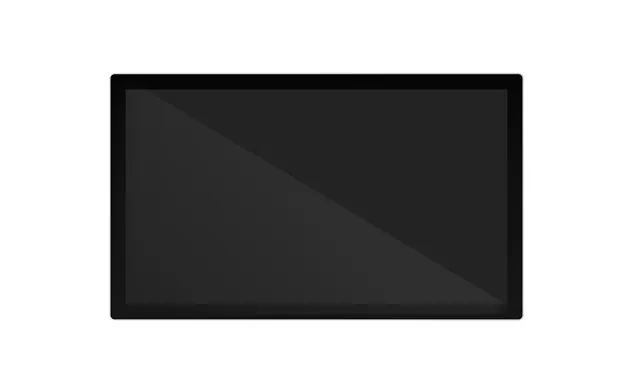

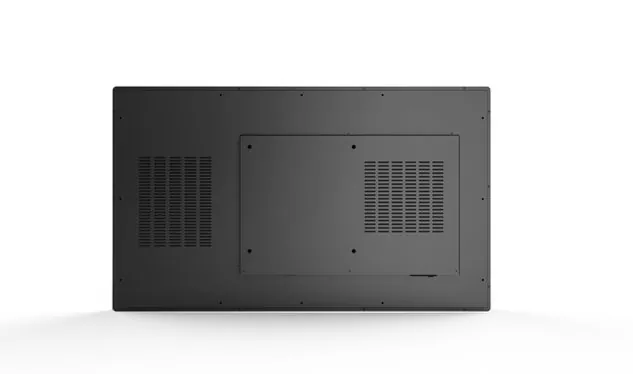

Giant Pcap Touch Screen Monitor
Siyi is a professional Giant Pcap Touch Screen Monitor manufacturer and supplier in China, you can rest assured to wholesale and customized Giant Pcap Touch Screen Monitor from our factory and we will offer you the best after-sale service and timely delivery. Slim Design Rugged Multi Touch Screen Display
Send Inquiry
Product Description
Siyi is one of the professional Giant Pcap Touch Screen Monitor manufacturer and supplier in China. Our products are CE certified and have in stock of factory, welcome to buy Giant Pcap Touch Screen Monitor from us.
Specifications
|
Model |
CTM032DR001 |
CTM055DR001 |
CTM065DR001 |
|
|
Housing |
Material |
rugged 1.2-1.5mm thickness aluminum |
||
|
Display |
Screen size |
32 inch |
55 inch |
65 Inch |
|
Resolution |
1920(RGB)×1080 [FHD] 69PPI |
3840(RGB)×2160 [UHD] 80PPI |
3840(RGB)×2160 [UHD] 68PPI |
|
|
Brightness |
400 cd/m² (Typ.) |
500 cd/m² (Typ.) |
500 cd/m² (Typ.) |
|
|
Support color |
16.7M , 72% NTSC |
1.07B |
1.07B , 68% NTSC |
|
|
Contrast |
1200:1 (Typ.) |
1100:1 |
1100:1 |
|
|
Viewing angle |
89/89/89/89 (Typ.)(CR≥10) |
89/89/89/89 (Min.)(CR≥10) |
89/89/89/89 (Min.)(CR≥10) |
|
|
Lamp Type |
WLED, 30K hours |
WLED, 50K hours |
WLED, 50K hours |
|
|
Touch screen |
Type |
Projected capacitive touch screen |
||
|
Point of touch |
10 point touch screen |
|||
|
Light transmittance |
>93% |
|||
|
Surface Hardness |
7H |
|||
|
IC |
EETI |
|
|
|
|
Lifetime |
Unlimited |
|
|
|
|
Input Video |
VGA |
Analog RGB (0.7vp-p), row field synchronous separation (TTL) |
||
|
DVI |
TMDS |
|
|
|
|
HDMI |
HDMI V1.4 Adobe color space |
|||
|
Support Mode |
Multi |
DOS, VGA, SVGA, XGA, SXGA+, UXGA, WXGA, WXGA+,WSXGA, WSXGA+, WUXGA etc |
||
|
Speakers |
built-in |
2*2W speakers |
||
|
OSD menu |
Full function |
Brightness, contrast, auto correction, phase, clock, field position, function setting, reset |
||
|
Languages |
Simplified Chinese, traditional Chinese, English, French, German, Italian |
|||
|

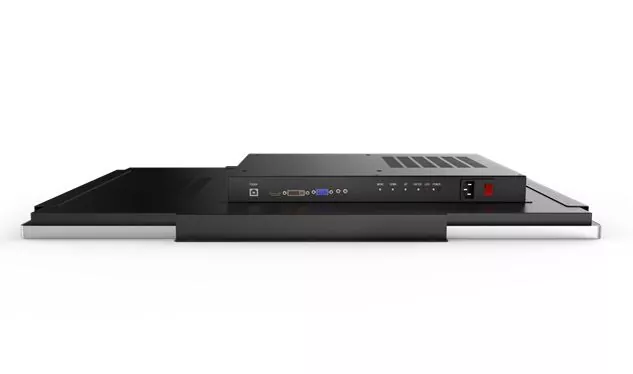

External I/O |
VGA |
1 |
||
|
HDMI |
1 |
|||
|
DVI |
1 |
|||
|
USB Type B |
1(for touch screen) |
|
|
|
|
PC Audio |
1 |
|
|
|
|
Power connector |
DC 24V or AC 100V-240V |
|||
|
Safety |
pass |
CE / FCC/ROHS |
||
|
Power |
Power supply voltage |
DC 24V or AC 100V-240V |
DC 24V or AC 100V-240V |
DC 24V or AC 100V-240V |
|
Power consumption(Typical) |
95W |
130W |
180W |
|
|
Environment |
Working temperature(℃) |
-10℃~60℃ |
||
|
Working humidity(RH) |
10% - 90% |
|||
|
Others |
Support O/S |
Windows, Linux, Mac, Android |
||
|
Mount |
Frame Mount&VESA 100 |
|||
Ordering lnformation
|
Part Number |
Description |
|
CTM032DR001-V1 |
32" Rugged Touch Screen Monitor with Pcap 10 points touch screen, IP65 Front, HDMI/DVI/VGA |
|
CTM055DR001-V1 |
55" Rugged Touch Screen Monitor with Pcap 10 points touch screen, IP65 Front, HDMI/DVI/VGA |
|
CTM065DR001-V1 |
65" Rugged Touch Screen Monitor with Pcap 10 points touch screen, IP65 Front, HDMI/DVI/VGA |
