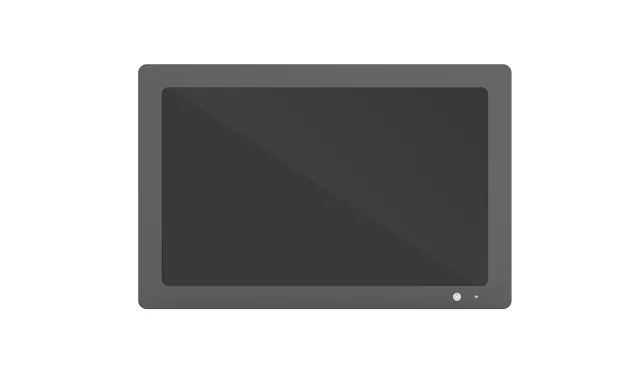

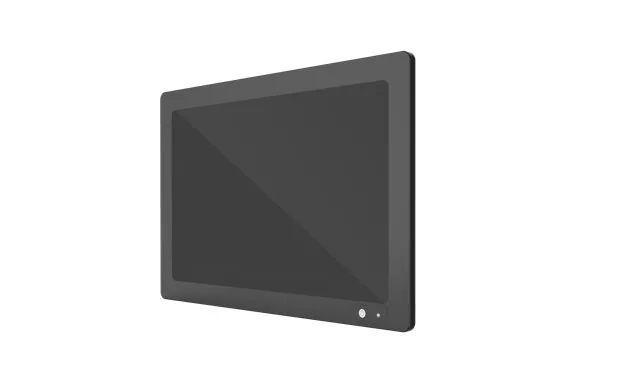

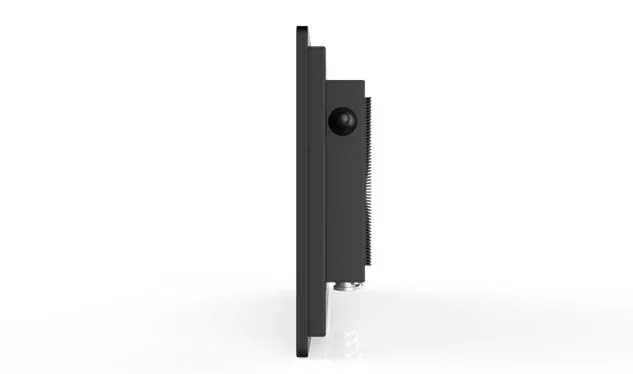

IP65 HB Touch PCs

CCETOUCH is a professional China quality IP65 HB Touch PCs manufacturer. This Touch Screen Display IP65 HB PCs is specially designed for harsh industrial environments. The product adopts a fully sealed design, achieving IP65 protection level, and features waterproof, dustproof, wide temperature operation, shock resistance, and a variety of industrial interfaces. It can be stably applied in various demanding industrial scenarios and meets diverse needs such as automation control, data collection, and human-computer interaction.

Send Inquiry

Product Description

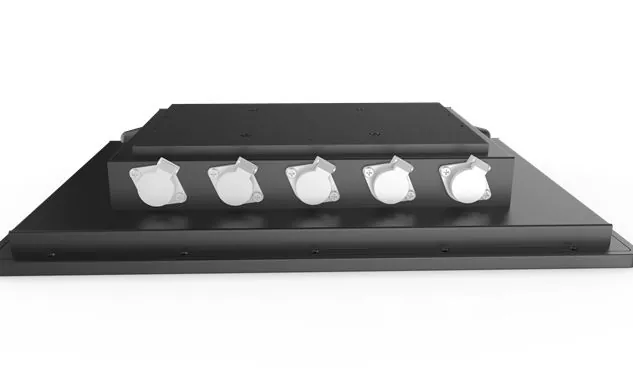

The core design of CCETOUCH IP65 HB Touch PCs are an IP65 fully sealed structure, which can completely prevent dust and withstand low-pressure water flushing. It is suitable for humid, dusty and outdoor scenarios.

In addition, this High Brightness IP65 HB Touch Panel PCs are equipped with a high-performance industrial processor and a high-brightness touch screen, supporting smooth operation of various industrial software and glove touch control. The product provides a wide range of industrial interfaces, which can be flexibly expanded and seamlessly connected to peripheral devices such as PLCs and sensors.

At the same time, this Industrial IP65 HB Touch PCs also offers various installation methods such as panel-mounted and wall-mounted. This ensures flexible deployment and convenient maintenance in scenarios such as factory automation, machine vision, outdoor information dissemination, and logistics warehousing, and is a stable and reliable industrial hardware solution.

Three Product Core Characteristics

1.Industrial-grade durable construction

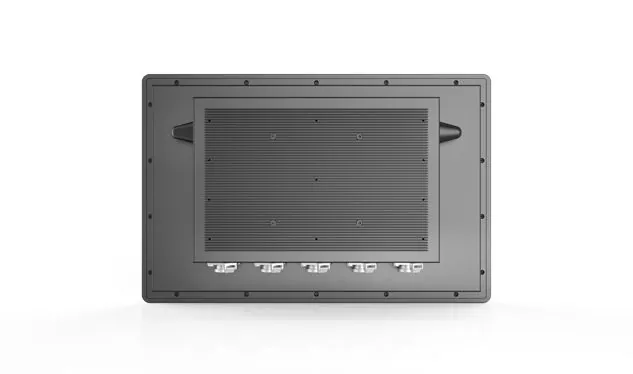

The core components of the Industrial IP65 LCD Touchscreen Display are all manufactured using durable materials that meet industrial standards, ensuring a long service life and high reliability of the product. Our design generally adopts a fanless cooling solution, which can achieve efficient heat dissipation while completely eliminating the possibility of dust entering through the fan opening, fundamentally ensuring the cleanliness and stable operation of the internal system.

2. Professional-level touch display screen

This High Brightness IP65 HDMI Touchscreen Monitor offer a sleek and sturdy body, and all models come with a touch screen that supports capacitive 10-point touch. The screen features high resolution, TFT panel, LED backlighting, high brightness and wide viewing angle, and has a long-lasting backlight lifespan. There are multiple display ratios available, including 5:4, 4:3 or 16:9, aiming to precisely meet the complex and variable information presentation and human-computer interaction requirements in industrial settings.

3. Robust environmental adaptability

The front panel or the entire unit of each Waterproof and Dust proof IP65 HB Touch Panel PCs has passed strict IP protection level certifications. In addition to IP/NEMA ratings, the product also undergoes comprehensive measures such as wide temperature operation design, all-aluminum alloy casing, optional SSD storage, or shock-proof kits to ensure that the equipment can maintain uninterrupted and stable operation even when facing extreme industrial environment challenges such as moisture, dust, oil contamination, drastic temperature changes, or continuous vibration.

Specifications

Model		CTPC156FS101	CTPC215FS101
Processor system	CPU	Integrated Intel® I5-6360U dual core processor, TDP15W
	Frequency	2.0 GHz
	Chipset	SOC
Graphics	Technology	Integrated Intel® HD Graphics 540
	Capability	1VGA,1support dual channel 24bit LVDS,1*HDMI
	AFBC	Support
Display	Screen size	15.6 inch	21.5 inch
	Resolution	1366(RGB)×768 WXGA 100PPI	1920(RGB)×1080, FHD, 102PPI
	Brightness	1000 cd/m² (Typ.) or higher	1000 cd/m² (Typ.) or higher
	Support color	16.2M , 70% NTSC	16.7M
	Contrast	500:1 (Typ.)	1000:1 (Typ.) (TM)
	Viewing angle	85/85/80/80 (Typ.)(CR≥10)	89/89/89/89 (Typ.)(CR≥10
	Lamp Type	WLED , 50K hours	WLED , 30K hours
Touch screen	Type	Projected capacitive touch screen
	Point of touch	10 point touch screen
	Light transmittance	>93%
	Surface Hardness	7H
Memory	Technology	2* DDR3L SODIMM slot
	max	32GB
Network	Ethernet	2* Intel® 211AT Gigabit Ethernet,support Wake On LAN / PXE
	WIFI	Theros AR5BHB116 AR9382 PCI-E 300M wireless card, supports 2.4GHz/5.8GHz
	4G	LTE-TDD/LTE-FDD/TD-SCDMA/EDGE/GPRS/GSM(optional)
Audio	Chipset	Integrated ALC662 6-channel high fidelity audio controller
	Connector	1MIC, 1Line_out
External I/O Interface	USB	4(2USB 3.0, 2USB 2.0)
	HDMI	1*HDMI out
	Gigabit LAN port	1*RJ45
	Serial connectors	1*RS232
	WIFI antenna	2*SMA connectors
	Power input	DC 12V
	Switch	1*motherboard power switch
Built-in I/O	COM	2*RS232
	USB	4* USB 2.0 port 2*5pin
	SIM socket	1
	Power connector	1*4 pin ATX power supply connector, support 12V input output
Watchdog	Type	Support hardware reset function(L256, 0~255 seconds)
GPIO	GPIO	Support 4 ways input output GPIO
BIOS	version	AMI 64Mb Flash ROM
Power	Power supply voltage	DC 12V	DC 12V
	Power consumption(Typical)	45W	55W
Environment	Working temperature(℃)	-10℃~50℃
	Working humidity(RH)	10% - 90%
Others	Operating system	Win10; Linux; 32Bit/64Bit
	Mount	VESA 100

Ordering lnformation

Part Number	Description
CTPC156FS101-V1	15.6" Rugged IP65 Fanless Touch Screen Computer with Integrated Intel® I5-6360U dual core processor, Wide screen, Pcap 10 points touch screen, 1000Nit brightness, fanless design, DC 12V power input
CTPC215FS101-V1	21.5 Rugged IP65 Fanless Touch Screen Computer with Integrated Intel® I5-6360U dual core processor, Wide screen, Pcap 10 points touch screen, 1000Nit brightness, fanless design, DC 12V power input
