Multi-function Totem

CCETOUCH is a proficient China Multi-function Totem supplier. This is a high-performance self-service terminal integrating advanced hardware and intelligent interconnection functions. Its design fully takes into account the common demands of public places for equipment reliability, interactive experience and multi-functional integration, and can provide users with intuitive and convenient one-stop services.

Send Inquiry

Product Description

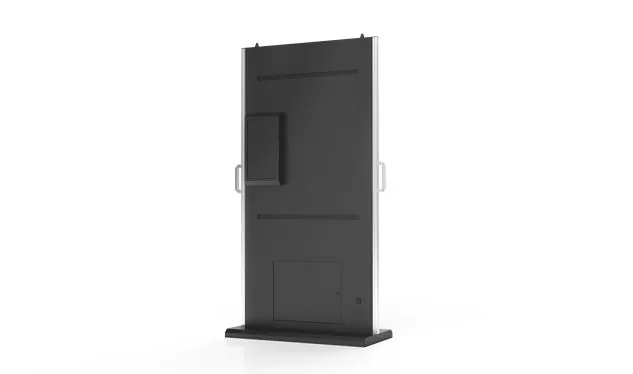

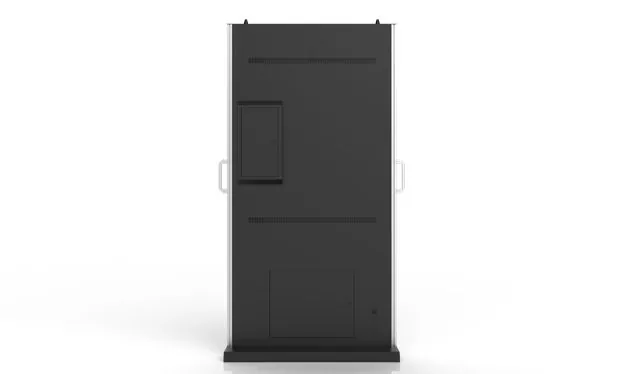

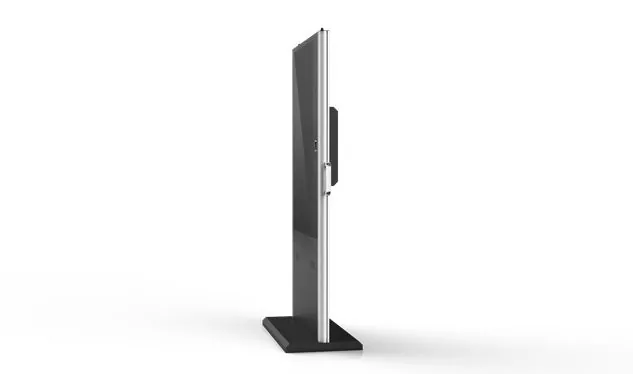

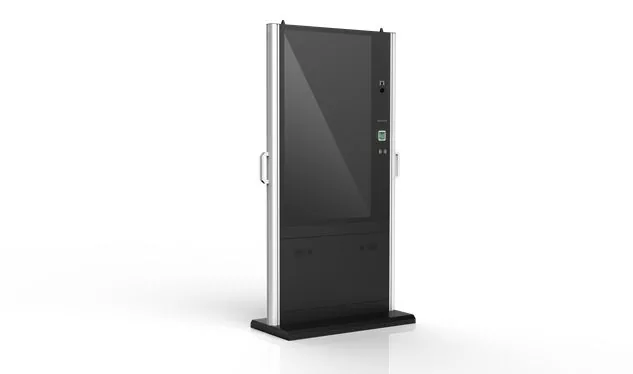

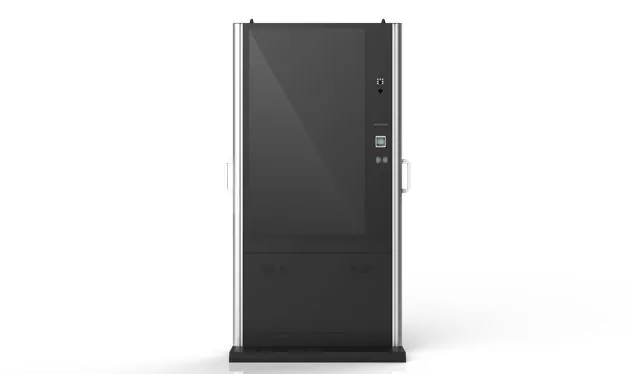

CCETOUCH Multi-function Totem device is equipped with a 55-inch high-definition display screen, combined with high-sensitivity capacitive touch technology, supporting multi-touch control, ensuring a smooth and precise touch operation experience. The core processing unit is equipped with an Intel ® Core ™ i5-6360U dual-core processor with a base frequency of 2.0GHz. This Multi-function Interactive 4K Screen Totem features outstanding computing power and energy efficiency, ensuring smooth playback of multimedia content and rapid response to multiple tasks, meeting the requirements for long-term stable operation.

Combining a stable network connection with a remotely manageable digital content system, the Standing LCD Display Multi-function Totem can achieve comprehensive functions such as interactive information query, identity verification, ticket printing and contactless payment, and is suitable for digital services and self-service business processing scenarios in various public places.

Main Functions

To adapt to diverse business scenarios, the Multi-function High-brightness Touch Screen Totem integrates a variety of commonly used peripherals

1. Built-in camera: Supports face recognition, photo capture or video customer service functions, suitable for identity assistance verification or remote assistance scenarios.

2. NFC reading and writing module: Supports near-field communication in compliance with ISO standards, capable of reading ID cards, social security cards, payment cards or various NFC tags, facilitating contactless identity verification and quick payment.

3. Thermal printer: Integrated with a high-speed printing engine, it can quickly and quietly output receipts, vouchers, QR codes or small receipts, meeting the physical document requirements for business processing.

4. Fingerprint scanner: It provides a biometric verification solution, enhancing operational security and the reliability of personal account management, and is suitable for businesses that require high-level security confirmation.

Specifications

Model		CTPC055DR105
Processor system	CPU	Intel® Core processor I5-6360U
	Frequency	Dual core 2.0 GHz
	L2 Cache	4MB
	System Chipset	N/A
	BIOS	AMI 64Mb Flash ROM
Memory	Technology	DDR3L 1333 MHz SDRAM
	Max. Capacity	8GB
	Socket	1(204-pin SO-DIMM)
Display	Screen size	55 inch
	Resolution	3840(RGB)×2160 [UHD] 80PPI
	Brightness	500 cd/m² (Typ.)
	Contrast ratio	1100:1 (Typ.) (TM)
	Support color	1.07B
	Response time	8 (Typ.)(G to G)
	Viewing angle	89/89/89/89 (Min.)(CR≥10)
	Lamp Type	WLED , 50K hours
Touch Screen	Type	NAMI Capacitive touch screen
	Touch point	10 points touch
	Surface Hardness	7H
	Durability	Unlimited
	Transparency	>93%
Graphics	Chipset	Integrated Intel® HD Graphics 540
Graphics	Interface	1VGA,1support dual channel 24bit LVDS,1*HDMI
Ethernet	Controller	Intel® 211AT Gigabit Ethernet, ,support Wake On LAN / PXE
Ethernet	Interface	2*RJ45
Audio	Chipset	Integrated ALC662 6-channel high fidelity audio controller
Audio	Connector	MIC, Line_out
Storage	mSATA	1*mSATA slot,support WIFI、SSD, SSD transmission rate up to 6Gbps
	SATA	1* SATA3.0 HDD port, transmission rate up to 6Gbps
	JSATA	1* JSATA pin HDD port 2*5pin , (optional with 7pin SATA port)
Expansion	Connector	1* MPCIE slot,support WIFI,USB WIFI,3G module
I/O Interface	USB	2* USB 3.0
	HDMI	1
	VGA	1
	Gigabit LAN port	2*RJ45
	Line out (green)	1
	Power	1* 12V DC_JACK input
	Switch	1* Power switch, 1* Reset switch (front panel)
Built-in I/O	Serial connectors	6* RS232 COM port, COM2 support 485/422 function
	USB	6* USB 2.0 port 2*5pin
	Others	1* SIM socket
Built-in functions	NFC	ACS ACR1252U reader/writer
	Webcam	5M pixel IR nigh vision with MIC integrated
	Thermal Printer	58mm thermal printer with auto-cut/automatic paper feeding feature
	Finger Print scanner	Finger Print scanner
GPIO	connector	Support 4 ways input output GPIO
Watchdog	Type	Support hardware reset function(L256, 0~255 seconds)
Power	Power supply voltage	100V-240V
	Power consumption(Typical)	185W
	Power consumption(Stand by.)	≦1W
Environment	Working temperature(℃)	-10 ~ +60
Environment	Working humidity(RH)	10% - 90%
	Dimension(LWH)	1006196
	Weight	115kg
	Operating system	Windows 7/8.1/10,Ubuntu14.04

Ordering lnformation

Part Number	Description
CTPC055DR105	55" Standing free Capacitive Touch Screen Kiosk with Intel® Core processor I5-6360U dual core 2.0 GHz processor,built-in webcam/NFC/Thermal printer/Finger print scanner
