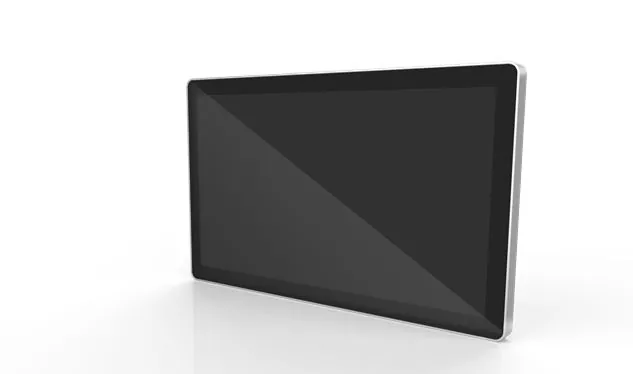

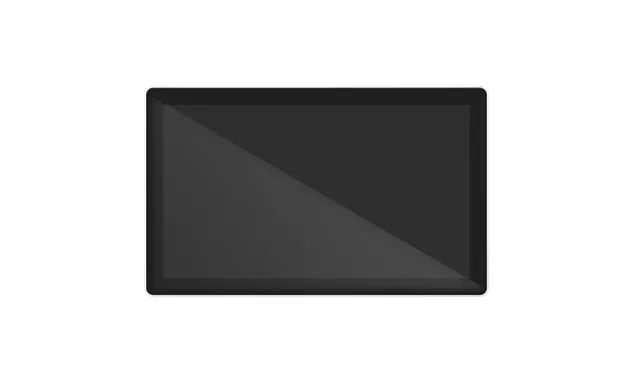

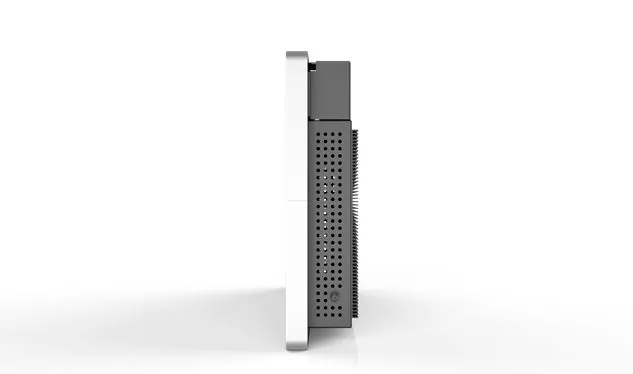

Open Frame Pcap Touch PC
As one of professional manufacturer, Siyi would like to provide you high quality Open Frame Pcap Touch PC. And we will offer you the best after-sale service and timely delivery. Framless&VESA mount P-cap Touch Screen PCs
Send Inquiry
Product Description
The producers of Siyi in China offer high-quality products, you are welcome to purchase straight high-quality Open Frame Pcap Touch PC at a good price.
Specifications
|
Model |
CTPC101DR002 |
CTPC156DR003 |
CTPC215DR001 |
|
|
Processor system |
CPU |
Integrated Intel® I5-6360U dual core processor, TDP15W |
||
|
Frequency |
2.0 GHz |
|||
|
Chipset |
SOC |
|||
|
Graphics |
Technology |
Integrated Intel® HD Graphics 540 |
||
|
Capability |
1*VGA,1*support dual channel 24bit LVDS,1*HDMI |
|||
|
AFBC |
Support |
|||
|
Display |
Screen size |
10.1 inch |
15.6 inch |
21.5 inch |
|
Resolution |
1280(RGB)×800 [WXGA] 149PPI |
1366(RGB)×768 WXGA 100PPI |
1920(RGB)×1080, FHD, 102PPI |
|
|
Brightness |
400 (Typ.) |
400 cd/m² (Typ.) |
350 cd/m² (Typ.) |
|
|
Support color |
16.7M , 50% NTSC |
16.2M , 70% NTSC |
16.7M |
|
|
Contrast |
800 : 1 (Typ.) |
500:1 (Typ.) |
1000:1 (Typ.) (TM) |
|
|
Viewing angle |
85/85/85/85 (Typ.)(CR≥10) |
85/85/80/80 (Typ.)(CR≥10) |
89/89/89/89 (Typ.)(CR≥10 |
|
|
Lamp Type |
3S11P WLED , 30K hours |
WLED , 50K hours |
WLED , 30K hours |
|
|
Touch screen |
Type |
Projected capacitive touch screen |
||
|
Point of touch |
10 point touch screen |
|||
|
Light transmittance |
>93% |
|||
|
Surface Hardness |
7H |
|||
|
Memory |
Technology |
2* DDR3L SODIMM slot |
||
|
max |
32GB |
|||
|
Network |
Ethernet |
2* Intel® 211AT Gigabit Ethernet,support Wake On LAN / PXE |
||
|
WIFI |
Theros AR5BHB116 AR9382 PCI-E 300M wireless card, supports 2.4GHz/5.8GHz |
|||
|
4G |
LTE-TDD/LTE-FDD/TD-SCDMA/EDGE/GPRS/GSM(optional) |
|||
|
Audio |
Chipset |
Integrated ALC662 6-channel high fidelity audio controller |
||
|
Connector |
1*MIC, 1*Line_out |
|||
|

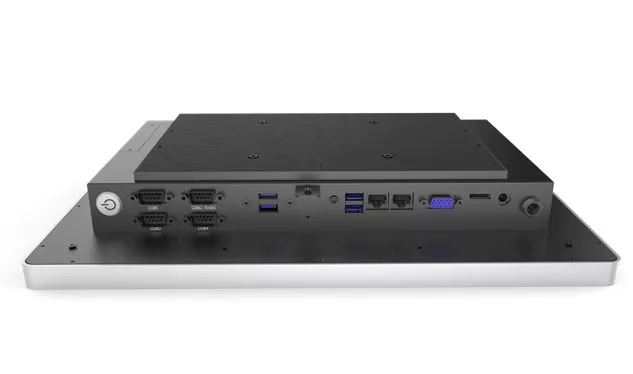

External I/O Interface |
USB |
4(2*USB 3.0, 2*USB 2.0) |
||
|
HDMI |
1*HDMI out |
|||
|
VGA |
1*VGA |
|||
|
Gigabit LAN port |
2*RJ45 |
|||
|
Audio |
1*MIC, 1*Line_out |
|||
|
Serial connectors |
4(3*RS232 , 1*RS485) |
|||
|
WIFI antenna |
2*SMA connectors |
|||
|
Power input |
DC 12V |
|||
|
Switch |
1*motherboard power switch |
|||
|
Built-in I/O |
COM |
2*RS232 |
||
|
USB |
4* USB 2.0 port 2*5pin |
|||
|
SIM socket |
1 |
|||
|
Power connector |
1*4 pin ATX power supply connector, support 12V input output |
|||
|
Watchdog |
Type |
Support hardware reset function(L256, 0~255 seconds) |
||
|
GPIO |
GPIO |
Support 4 ways input output GPIO |
||
|
BIOS |
version |
AMI 64Mb Flash ROM |
||
|
Power |
Power supply voltage |
DC 12V |
DC 12V |
DC 12V |
|
Power consumption(Typical) |
30W |
34W |
42W |
|
|
Environment |
Working temperature(℃) |
0℃~50℃ |
||
|
Working humidity(RH) |
10% - 90% |
|||
|
Others |
Operating system |
Win10; Linux; 32Bit/64Bit |
||
|

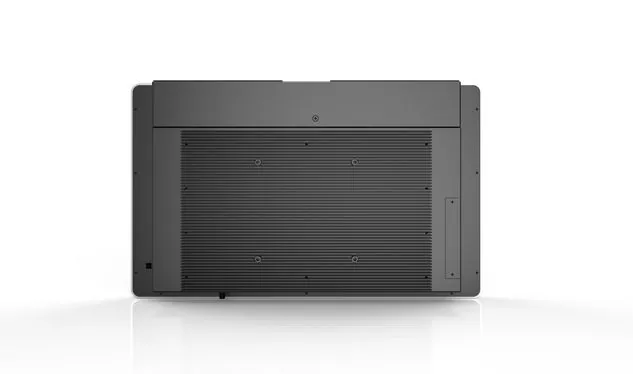

Mount |
Frame Mount&VESA 100 |
|||
Ordering lnformation
|
Part Number |
Description |
|
CTPC101DR002-V1 |
10.1" Rugged Front Frame Mount Fanless Touch Screen Computer with Integrated Intel® I5-6360U dual core processor, Wide screen, Pcap 10 points touch screen, fanless design, DC 12V power input |
|
CTPC156DR003-V1 |
15.6" Rugged Front Frame Mount Fanless Touch Screen Computer with Integrated Intel® I5-6360U dual core processor, Wide screen, Pcap 10 points touch screen, fanless design, DC 12V power input |
|
CTPC215DR001-V1 |
21.5" Rugged Front Frame Mount Fanless Touch Screen Computer with Integrated Intel® I5-6360U dual core processor, Wide screen, Pcap 10 points touch screen, fanless design, DC 12V power input |
