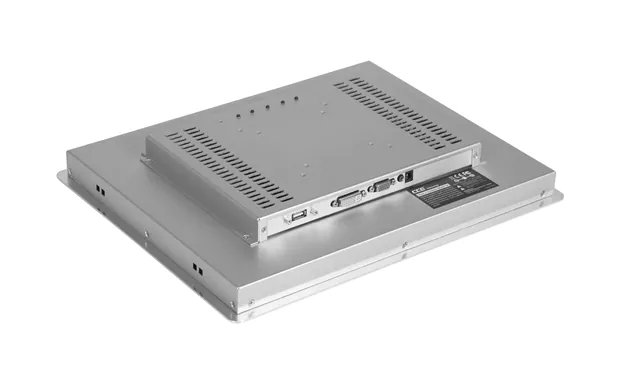

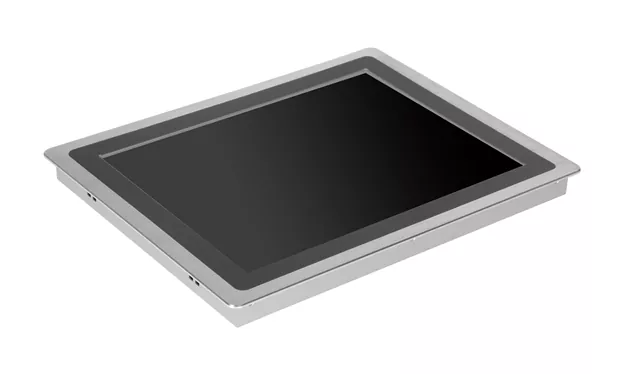

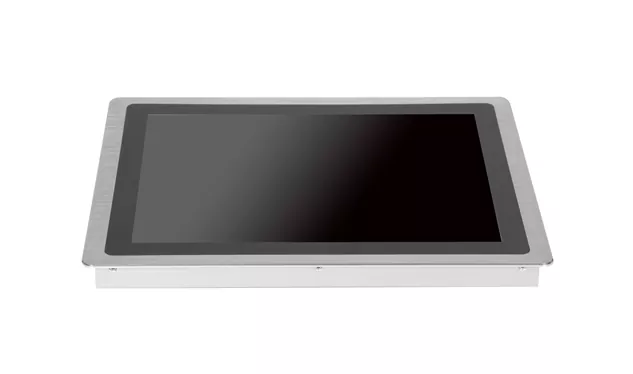

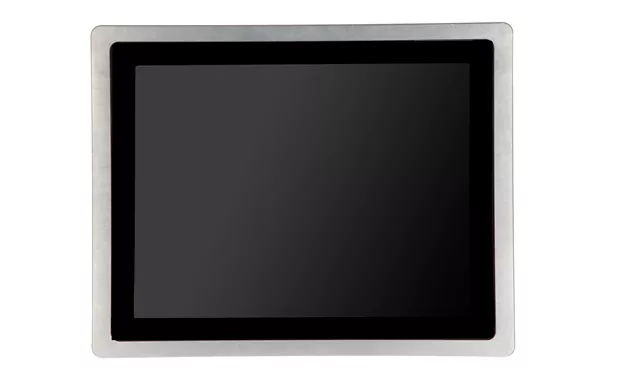

Panel Mount Pcap Touch Monitor
Siyi is a professional Panel Mount Pcap Touch Monitor manufacturer and supplier in China. If you interested in products, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service. Rugged Pcap Multi Touch Screen Monitor Panel Mount Type
Send Inquiry
Product Description
Siyi is one of the famous China Panel Mount Pcap Touch Monitor manufacturer and supplier. Our factory specializes in manufacturing of Panel Mount Pcap Touch Monitor. Welcome to buy Panel Mount Pcap Touch Monitor from Siyi. Every request from customers is being replied within 24 hours.
Specifications
|
Model |
CTM015DR001 |
CTM019DR001 |
|
|
Housing |
Material |
rugged 1.2-1.5mm thickness aluminum |
|
|
Display |
Screen size |
15 inch |
19 inch |
|
Resolution |
1024(RGB)×768, XGA, 85PPI |
1280(RGB)×1024, SXGA, 86PPI |
|
|
Brightness |
400 cd/m² (Typ.) |
350 cd/m² (Typ.) |
|
|
Support color |
262K/16.2M , 63% NTSC |
16.7M , 72% NTSC |
|
|
Contrast |
800:1 (Typ.) (TM) |
1000:1 (Typ.) (TM) |
|
|
Viewing angle |
80/80/70/80 (Typ.)(CR≥10) |
85/85/80/80 (Typ.)(CR≥10) |
|
|
Lamp Type |
WLED , 50K hours |
WLED , 50K hours |
|
|
Touch screen |
Type |
Projected capacitive touch screen |
|
|
Point of touch |
10 point touch screen |
||
|
Light transmittance |
>93% |
||
|
Surface Hardness |
7H |
||
|
IC |
EETI |
||
|
Lifetime |
Unlimited |
||
|
Input Video |
VGA |
Analog RGB (0.7vp-p), row field synchronous separation (TTL) |
|
|
DVI |
TMDS |
||
|
HDMI |
HDMI V1.4 Adobe color space |
||
|
Support Mode |
Multi |
DOS, VGA, SVGA, XGA, SXGA+, UXGA, WXGA, WXGA+,WSXGA, WSXGA+, WUXGA etc |
|
|
Speakers |
built-in |
2*2W speakers |
|
|
OSD menu |
Full function |
Brightness, contrast, auto correction, phase, clock, field position, function setting, reset |
|
|
Languages |
Simplified Chinese, traditional Chinese, English, French, German, Italian |
||
|
External I/O |
VGA |
1 |
|
|
HDMI |
1 |
||
|
DVI |
1 |
||
|
USB Type B |
1(for touch screen) |
||
|
PC Audio |
1 |
||
|
Power connector |
DC 12V |
||
|
Safety |
pass |
CE / FCC/ROHS |
|
|
Power |
Power supply voltage |
DC 12V |
DC 12V |
|
Power consumption(Typical) |
15W |
25W |
|
|
Environment |
Working temperature(℃) |
-10℃~60℃ |
|
|
Working humidity(RH) |
10% - 90% |
||
|
Others |
Support O/S |
Windows, Linux, Mac, Android |
|
|
Mount |
Frame Mount&VESA 100 |
||
Ordering lnformation
|
Part Number |
Description |
|
CTM015DR0031-V1 |
15" Rugged Panel Mount Touch Screen Monitor with Pcap 10 points touch screen, IP65 Front, HDMI/DVI/VGA, 12V DC in |
|
CTM019DR001-V1 |
19" Rugged Panel Mount Touch Screen Monitor with Pcap 10 points touch screen, IP65 Front, HDMI/DVI/VGA, 12V DC in |
