Products
Panel Mount Touch PCs

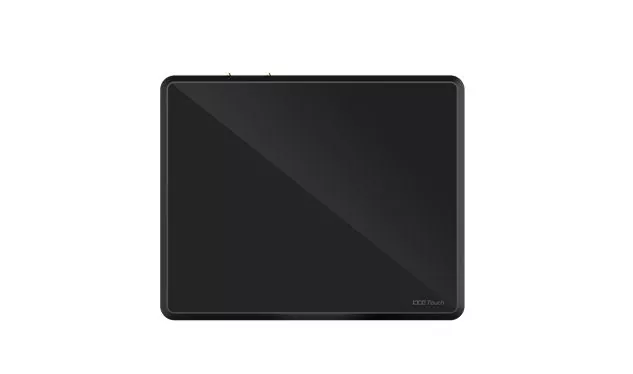

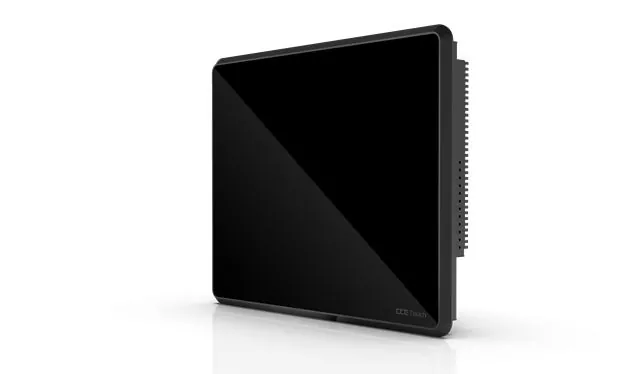

CCETOUCH Panel Mount Touch PCs is an intelligent integrated computer display specifically designed for industrial environments. The Fully Enclosed Industrial Panel PC IP65 LCD Moniter features a sturdy fanless structure and industrial-grade hardware, offering excellent durability and stability and it can be easily and flexibly installed in various industrial scenarios. We are committed to providing our customers with high-quality hardware, timely technical support, and efficient delivery services.
Send Inquiry
Product Description
CCETOUCH Panel Mount Touch PCs are specially designed for industrial automation and harsh environments. It is an intelligent panel terminal with high integration and strong reliability. The Industrial Touch Panel Mount PC adopts a fully metal sealed fanless design, featuring excellent dust-proof, moisture-proof and anti-electromagnetic interference capabilities, ensuring continuous and stable operation in industrial sites with vibration, dust and variable temperature and humidity conditions.
The core of this Industrial Panel Mount PC With Touch Screen is equipped with a high-performance industrial processor and various specifications of high-brightness industrial touch screens, supporting clear display and smooth touch control under complex lighting conditions. The device integrates a rich set of industrial standard interfaces, enabling seamless connection with PLCs, instruments, and various equipment on the production line.
As a direct manufacturer, we provide complete services from hardware customization, rapid delivery to full-cycle technical support, aiming to become a reliable hardware foundation in your automation system construction.
Three installation methods
The core of this CCETOUCH Wall Mount Industrial Panel PC is an integrated hardware platform designed for industrial environments. It offers standardized interfaces and dimensions, specifically tailored for easy and stable installation in various scenarios.
●Embedded installation: It can be directly embedded into the surface openings of control cabinets, operation consoles or large equipment, achieving integrated integration with the equipment. The appearance is neat and it saves space.

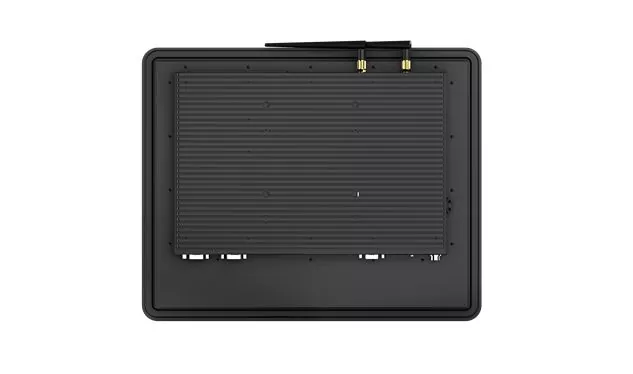

●Wall-mounted/Column-mounted installation: Through standard VESA mounting holes (usually located on the back), it can be easily fixed on the wall, column, or a dedicated bracket, functioning as an independent information terminal or interactive node.
●Rack-mounted installation: Some models can be conveniently managed and maintained through the optional mounting bracket kit.
Specifications
Below you can find the specifications of our Compact Industrial Touch Panel Mount PC Screen Monitor:
|
Model |
CTPC015DR003 |
CTPC019DR003 |
|
|
Processor system |
CPU |
Integrated Intel® I5-6360U dual core processor, TDP15W |
|
|
Frequency |
2.0 GHz |
||
|
Chipset |
SOC |
||
|
Graphics |
Technology |
Integrated Intel® HD Graphics 540 |
|
|
Capability |
1*VGA,1*support dual channel 24bit LVDS,1*HDMI |
||
|
AFBC |
Support |
||
|
Display |
Screen size |
15 inch |
19 inch |
|
Resolution |
1024(RGB)×768, XGA, 85PPI |
1280(RGB)×1024, SXGA, 86PPI |
|
|
Brightness |
400 cd/m² (Typ.) |
350 cd/m² (Typ.) |
|
|
Support color |
262K/16.2M , 63% NTSC |
16.7M , 72% NTSC |
|
|
Contrast |
800:1 (Typ.) (TM) |
1000:1 (Typ.) (TM) |
|
|
Viewing angle |
80/80/70/80 (Typ.)(CR≥10) |
85/85/80/80 (Typ.)(CR≥10) |
|
|
Lamp Type |
WLED , 50K hours |
WLED , 50K hours |
|
|
Touch screen |
Type |
Projected capacitive touch screen |
|
|
Point of touch |
10 point touch screen |
||
|
Light transmittance |
>93% |
||
|
Surface Hardness |
7H |
||
|
Memory |
Technology |
2* DDR3L SODIMM slot |
|
|
max |
32GB |
||
|
Network |
Ethernet |
2* Intel® 211AT Gigabit Ethernet,support Wake On LAN / PXE |
|
|
WIFI |
Theros AR5BHB116 AR9382 PCI-E 300M wireless card, supports 2.4GHz/5.8GHz |
||
|
4G |
LTE-TDD/LTE-FDD/TD-SCDMA/EDGE/GPRS/GSM(optional) |
||
|
Audio |
Chipset |
Integrated ALC662 6-channel high fidelity audio controller |
|
|
Connector |
1*MIC, 1*Line_out |
||
|

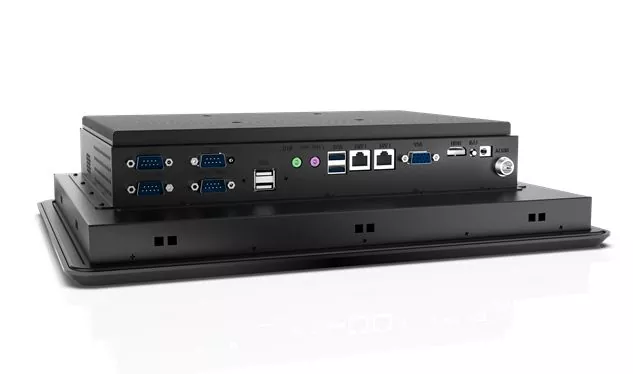

External I/O Interface |
USB |
4(2*USB 3.0, 2*USB 2.0) |
|
|
HDMI |
1*HDMI out |
||
|
VGA |
1*VGA |
||
|
Gigabit LAN port |
2*RJ45 |
||
|
Audio |
1*MIC, 1*Line_out |
||
|
Serial connectors |
4(3*RS232 , 1*RS485) |
||
|
WIFI antenna |
2*SMA connectors |
||
|
Power input |
DC 12V |
||
|
Switch |
1*motherboard power switch |
||
|
Built-in I/O |
COM |
2*RS232 |
|
|
USB |
4* USB 2.0 port 2*5pin |
||
|
SIM socket |
1 |
||
|
Power connector |
1*4 pin ATX power supply connector, support 12V input output |
||
|
Watchdog |
Type |
Support hardware reset function(L256, 0~255 seconds) |
|
|
GPIO |
GPIO |
Support 4 ways input output GPIO |
|
|
BIOS |
version |
AMI 64Mb Flash ROM |
|
|
Power |
Power supply voltage |
DC 12V |
DC 12V |
|
Power consumption(Typical) |
30W |
48W |
|
|
Environment |
Working temperature(℃) |
0℃~50℃ |
|
|
Working humidity(RH) |
10% - 90% |
||
|
Others |
Operating system |
Win10; Linux; 32Bit/64Bit |
|
|
Mount |
Panel Mount&VESA 100 |
||
Ordering lnformation
More detailed information of our Industrial Panel Mount Touch Screen PC are listed below:
|
Part Number |
Description |
|
CTPC015DR003-V1 |
15" Rugged Panel Mount Fanless Touch Screen Computer with Integrated Intel® I5-6360U dual core processor, Pcap 10 points touch screen, fanless design, DC 12V power input |
|
CTPC019DR003-V1 |
19" Rugged Panel Mount Fanless Touch Screen Computer with Integrated Intel® I5-6360U dual core processor, Pcap 10 points touch screen, fanless design, DC 12V power input |
