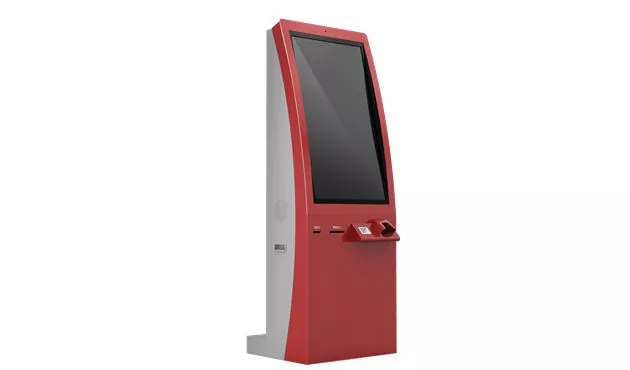

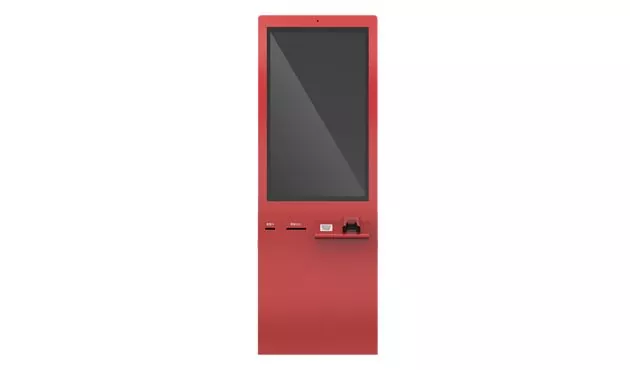

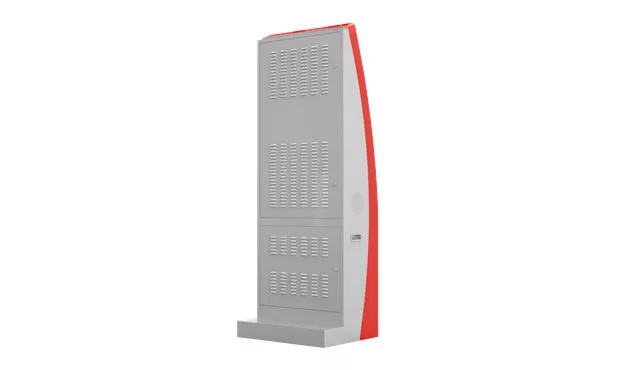

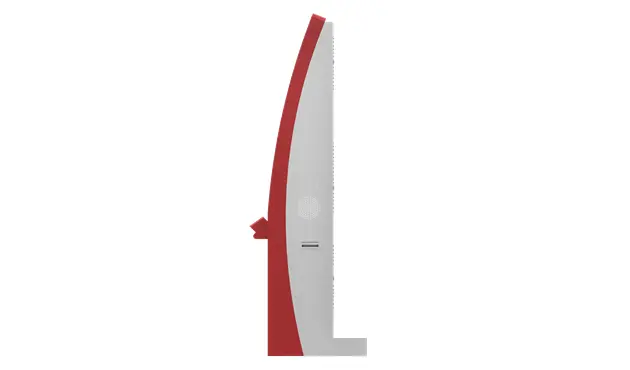

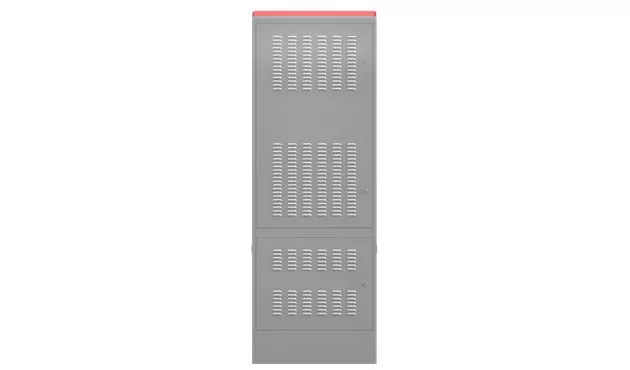

Self Order Touch Kiosk

Siyi is one of Self Order Touch Kiosk manufacturer and supplier in China. We can provide professional service and better price for you. If you interested in Self Order Touch Kiosk, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service. Touch Screen Kiosk with QR/NFC/Key board/Magnetic Card reader/Printer

Send Inquiry

Product Description

One of the Chinese companies offering Self Order Touch Kiosk for wholesale is Siyi. For you, we can offer better pricing and competent service. Should you be intrigued by Self Order Touch Kiosk, kindly get in touch with us. We adhere to the standard of conscience-driven, committed service at the cost of quality assurance.OneWe adhere to the standard of conscience-priced, devoted service, so you can feel secure.

Specifications

Model		CTPC032HW002	CTPC043HW002
Processor system	CPU	Intel® Core processor I5-6360U
	Frequency	Dual core 2.0 GHz
	L2 Cache	4MB
	System Chipset	N/A
	BIOS	AMI 64Mb Flash ROM
Memory	Technology	DDR3L 1333 MHz SDRAM
	Max. Capacity	8GB
	Socket	1(204-pin SO-DIMM)
Display	Screen size	32 inch	43 inch
	Resolution	1920(RGB)×1080 FHD 69PPI	3840(3)×2160 UHD 103PPI
	Brightness	400 cd/m² (Typ.)	390 cd/m² (Typ.)
	Contrast ratio	1200:1 (Typ.) (TM)	1100:1 (Typ.) (TM)
	Support color	16.7M 72% NTSC	1.07B , 75% NTSC
	Response time	8 (Typ.)(G to G) ms	8 (Typ.)(G to G) ms
	Viewing angle	89/89/89/89 (Min.)(CR≥10)	89/89/89/89 (Min.)(CR≥10)
	Lamp Type	WLED , 30K hours	WLED , 30K hours
Touch Screen	Type	IR touch screen
	Touch point	10 points touch
	Surface Hardness	7H
	Durability	Unlimited
	Transparency	>93%
Graphics	Chipset	Integrated Intel® HD Graphics 540
	Interface	1VGA,1support dual channel 24bit LVDS,1*HDMI
Ethernet	Controller	Intel® 211AT Gigabit Ethernet, ,support Wake On LAN / PXE
	Interface	2*RJ45
Audio	Chipset	Integrated ALC662 6-channel high fidelity audio controller
	Connector	MIC, Line_out
Storage	mSATA	1*mSATA slot,support WIFI、SSD, SSD transmission rate up to 6Gbps
	SATA	1* SATA3.0 HDD port, transmission rate up to 6Gbps
	JSATA	1* JSATA pin HDD port 2*5pin , (optional with 7pin SATA port)
Expansion	Connector	1* MPCIE slot,support WIFI,USB WIFI,3G module
I/O Interface	USB	2* USB 3.0
	HDMI	1
	VGA	1
	Gigabit LAN port	2*RJ45
	Line out (green)	1
	Power	1* 12V DC_JACK input
	Switch	1* Power switch, 1* Reset switch (front panel)
Built-in I/O	Serial connectors	6* RS232 COM port, COM2 support 485/422 function
	USB	6* USB 2.0 port 2*5pin
	Others	1* SIM socket
GPIO	connector	Support 4 ways input output GPIO
Watchdog	Type	Support hardware reset function(L256, 0~255 seconds)
Built-in parts	Thermal printer	80mm thermal printer with auto-cut/auto-feeding feature
	Webcam	5M pixel webcam with IR night vision
	Magnetic card reader	Motorized Card Reader/Writer supports RF/IC card R/W and magnetic card R
	NFC reader	ACM1281u-c7
Power	Power supply voltage	100V-240V
	Power consumption(Typical)	70W	85W
	Power consumption(Stand by.)	≦1W	≦1W
Environment	Working temperature(℃)	0 ~ +50
	Working humidity(RH)	10% - 90%
Others	Operating system	Windows 7/8.1/10,Ubuntu14.04

Ordering lnformation

Part Number	Description
CTPC032HW002-V1	32" Rugged IR multi touch Self-order Touch Screen Kiosk with Intel® Core processor I5-6360U dual core 2.0 GHz processor, built-in Thermal Printer/Webcam/NFC/Magnetic card reader
CTPC043HW002-V1	43" Rugged IR multi touch Self-order Touch Screen Kiosk with Intel® Core processor I5-6360U dual core 2.0 GHz processor, built-in Thermal Printer/Webcam/NFC/Magnetic card reader
