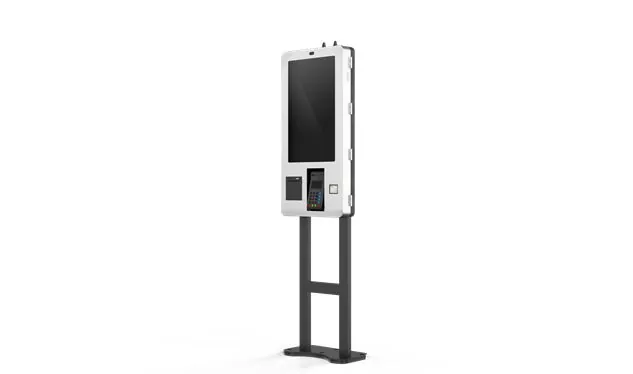

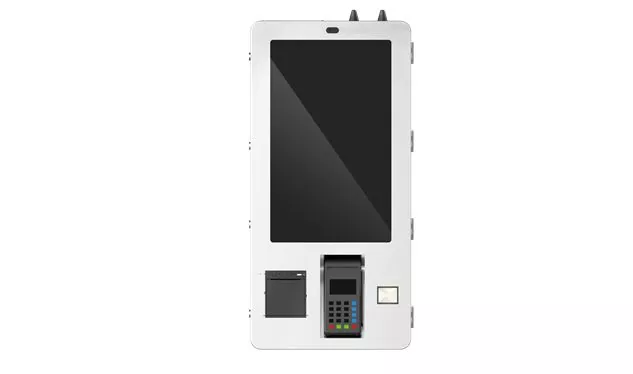

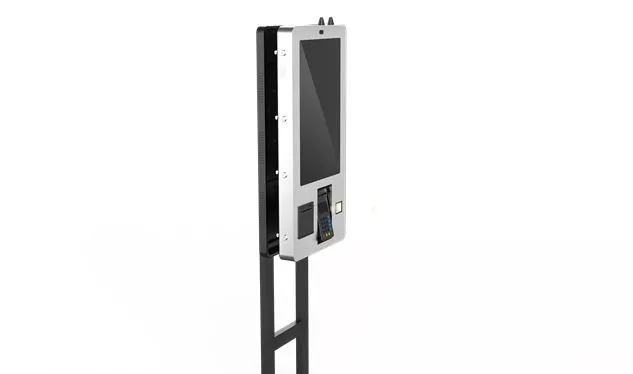

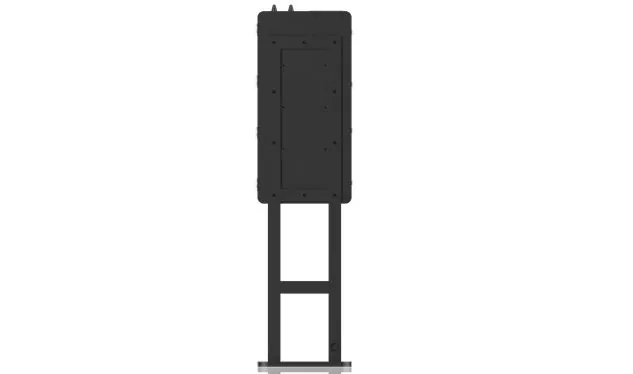

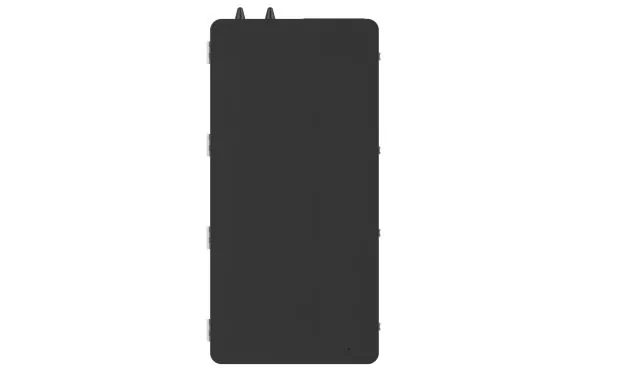

Self service Machine

Siyi is one of prominent manufacturer, producer, and exporter of Self service Machine in China. Self service Touch PC with Printer/QR reader/Webcam

Send Inquiry

Product Description

Siyi is one of China manufacturer & supplier who mainly produces Self service Machine with many years of experience. Hope to build business relationship with you.

Specifications

Model		CTPC024DR102	CTPC032DR103
Processor system	CPU	Intel® Core processor I5-6360U
	Frequency	Dual core 2.0 GHz
	L2 Cache	4MB
	System Chipset	N/A
	BIOS	AMI 64Mb Flash ROM
Memory	Technology	DDR3L 1333 MHz SDRAM
	Max. Capacity	8GB
	Socket	1(204-pin SO-DIMM)
Display	Screen size	23.6 inch	32 inch
	Resolution	1920(RGB)×1080, FHD, 93PPI	1920(RGB)×1080, FHD, 69PPI
	Brightness	250 cd/m² (Typ.)	400 cd/m² (Typ.)
	Contrast ratio	3000:1 (Typ.) (TM)	1200:1 (Typ.) (TM)
	Support color	16.7M 72% NTSC	16.7M 72% NTSC
	Response time	20 (Typ.)(G to G) ms	8 (Typ.)(G to G) ms
	Viewing angle	89/89/89/89 (Min.)(CR≥10)	89/89/89/89 (Min.)(CR≥10)
	Lamp Type	4 strings WLED , 40K hours	WLED , 30K hours
Touch Screen	Type	Pcap touch screen
	Touch point	10 points touch
	Surface Hardness	7H
	Durability	Unlimited
	Transparency	>93%
Graphics	Chipset	Integrated Intel® HD Graphics 540
	Interface	1VGA,1support dual channel 24bit LVDS,1*HDMI
Ethernet	Controller	Intel® 211AT Gigabit Ethernet, ,support Wake On LAN / PXE
	Interface	2*RJ45
Audio	Chipset	Integrated ALC662 6-channel high fidelity audio controller
	Connector	MIC, Line_out
Storage	mSATA	1*mSATA slot,support WIFI、SSD, SSD transmission rate up to 6Gbps
	SATA	1* SATA3.0 HDD port, transmission rate up to 6Gbps
	JSATA	1* JSATA pin HDD port 2*5pin , (optional with 7pin SATA port)
Expansion	Connector	1* MPCIE slot,support WIFI,USB WIFI,3G module
I/O Interface	USB	2* USB 3.0
	HDMI	1
	VGA	1
	Gigabit LAN port	2*RJ45
	Line out (green)	1
	Power	1* 12V DC_JACK input
	Switch	1* Power switch, 1* Reset switch (front panel)
Built-in I/O	Serial connectors	6* RS232 COM port, COM2 support 485/422 function
	USB	6* USB 2.0 port 2*5pin
	Others	1* SIM socket
GPIO	connector	Support 4 ways input output GPIO
Watchdog	Type	Support hardware reset function(L256, 0~255 seconds)
Built-in parts	Thermal printer	80mm thermal printer with auto-cut/auto-feeding feature
	Webcam	5M pixel webcam with IR night vision
	QR Scanner	support
Power	Power supply voltage	100V-240V
	Power consumption(Typical)	70W	85W
	Power consumption(Stand by.)	≦1W	≦1W
Environment	Working temperature(℃)	-10 ~ +50
	Working humidity(RH)	10% - 90%
	Dimension(LWH)	451092	5510110
	Weight	30	55
	Operating system	Windows 7/8.1/10,Ubuntu14.04	Windows 7/8.1/10,Ubuntu14.04

Ordering lnformation

Part Number	Description
CTPC024DR102-V1	24" Rugged Pcap Self-order Touch Screen Kiosk with Intel® Core processor I5-6360U dual core 2.0 GHz processor, built-in Thermal Printer/Webcam/QR
CTPC032DR103-V1	32" Rugged Pcap Self-order Touch Screen Kiosk with Intel® Core processor I5-6360U dual core 2.0 GHz processor, built-in Thermal Printer/Webcam/QR
