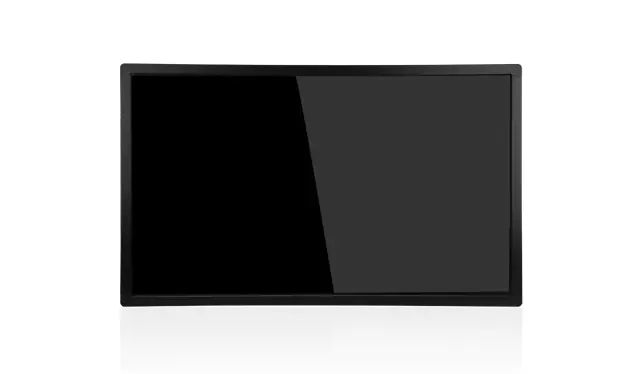

Touch Panel Industrial Rugged Android Tablet
The CCETOUCH quality Touch Panel Industrial Rugged Android Tablet are professional display terminals specifically designed for high-performance interactive scenarios. This Portable High Resolution Rugged Tablet Panel PC integrates the Rockchip RK3399 six-core 64-bit processor and 4K UHD ultra-clear display technology, offering three specifications of 43 inches, 55 inches, and 65 inches. With its industrial-grade stability, flexible system compatibility (Android/Ubuntu), and extremely rich expansion interfaces, CCETOUCH is committed to providing the most reliable touch solutions for digital signage, meeting collaboration, and industrial monitoring.
Send Inquiry
Product Description
CCETOUCH Touch Panel Industrial Rugged Android Tablet – a tough, reliable tablet built for industrial and outdoor use. It runs smoothly on both Android and Ubuntu systems, making it great for everyday tasks and custom needs. The screen stays clear and bright even under direct sunlight, with vivid colors and sharp details. That's why it's a perfect Outdoor Touch Screen Android Rugged Tablet.
It's also waterproof and dustproof, with a responsive and durable touch screen – truly an Industrial Waterproof Rugged Tablet Android you can count on. With plenty of ports to connect other devices, it supports long working hours and is built to last. Plus, CCETOUCH offers solid after-sales support and fast delivery, so you can use it with peace of mind.
Features
CCETOUCH Touch Panel Industrial Rugged Android Touch Tablet shows very power performance.
● Powerful performance and multi-system support: Equipped with the RK3399 six-core 64-bit processor with a clock speed of 2.0 GHz, it can run Android 7.1 and Ubuntu 16.04 perfectly, meeting the requirements for complex computing and secondary development.
● Top-notch 4K visual experience: The entire series supports ultra-high-definition resolution of 3840×2160, combined with a high brightness of 500 cd/m² and 10.7 billion color displays, ensuring a detailed and realistic picture quality even on large-sized screens.
● Professional industrial-grade touch control design: Utilizes a 7H hardness anti-scratch infrared touch screen, supporting 10-point sensitive touch control, with a light transmittance of over 93%, ensuring precise response and durability even under high-frequency usage.
● Outstanding connectivity and scalability: Built-in gigabit network port, dual-band Wi-Fi, and optional 4G module, along with 8 USB ports, 4 RS232 serial ports, and GPIO interfaces, enabling seamless integration with various industrial peripherals.
● Stability and reliability with manufacturer support: Capable of operating 24/7, with a backlight lifespan of up to 50,000 hours, and backed by CCETOUCH's professional after-sales service and prompt delivery.
Specifications
|
Model |
CATPC043HW104 |
CATPC055HW102 |
CATPC065HW101 |
|
|
Processor system |
CPU |
Six-Core ARM® 64-bit processor |
||
|
Frequency |
2.0 GHz |
|||
|
SOC |
Rockchip RK3399 (28nm HKMG Process) |
|||
|
GPU |
Technology |
ARM Mali-T860 MP4 Quad-Core GPU |
||
|
Capability |
Completely compatible with OpenGL ES1.1/2.0/3.0/3.1, OpenCL and DirectX 11.1 |
|||
|
AFBC |
Support |
|||
|
Display |
Screen size |
43 inch |
55 inch |
65 Inch |
|
Resolution |
3840(RGB)×2160 [UHD] 103PPI |
3840(RGB)×2160 [UHD] 80PPI |
3840(RGB)×2160 [UHD] 68PPI |
|
|
Brightness |
400 cd/m² (Typ.) |
500 cd/m² (Typ.) |
500 cd/m² (Typ.) |
|
|
Support color |
1.07B , 74% NTSC |
1.07B |
1.07B , 68% NTSC |
|
|
Contrast |
1000:1 |
1100:1 |
1100:1 |
|
|
Viewing angle |
89/89/89/89 (Min.)(CR≥10) |
89/89/89/89 (Min.)(CR≥10) |
89/89/89/89 (Min.)(CR≥10) |
|
|
Lamp Type |
WLED, 30K hours |
WLED, 50K hours |
WLED, 50K hours |
|
|
Touch screen |
Type |
IR touch screen |
||
|
Point of touch |
10 point touch screen |
|||
|
Light transmittance |
>93% |
|||
|
Surface Hardness |
7H |
|||
|
Memory |
Technology |
Dual-Channel DDR3 |
||
|
max |
32GB |
|||
|
Network |
Ethernet |
10/100/1000Mbps Ethernet |
||
|
WIFI |
2.4GHz/5GHz dual band WIFI, supports Wi-Fi 802.11b/g/n/ac |
|||
|
Bluetooth |
V2.1+EDR/Bluetooth 3.0/3.0+HS/4.0 |
|||
|
4G |
LTE-TDD/LTE-FDD/TD-SCDMA/EDGE/GPRS/GSM(optional) |
|||
|
Audio |
Connector |
1 x Analog audio (via 3.5mm Combo Audio Jack for audio input and ouput) |
||
|
1 x LINEOUT for audio output |
||||
|
Built-in I/O Interface |
USB |
6*USB-2.0 HOST , 1*USB3.0 HOST , 1*USB3.0 Type_C |
||
|
HDMI |
1*HDMI IN |
|||
|
PCIe |
1*Mini PCIe( 4G LTE) , 1*PCIe_1.27 host |
|||
|
SIM |
1*SIM card slot |
|||
|
Press buttons |
1*Reset, 1*Power, 1*Upgrade |
|||
|
Serial connectors |
4*RS232 , 1*UART TTL |
|||
|
IO |
4*IO |
|||
|
Wigan interface |
2*Wigan |
|||
|
Watchdog |
Type |
support software watch dog |
||
|
Power |
Power supply voltage |
100V-240V |
100V-240V |
100V-240V |
|
Power consumption(Typical) |
90W |
130W |
180W |
|
|
Environment |
Working temperature(℃) |
0℃~50℃ |
||
|
Working humidity(RH) |
5%~90% |
|||
|
Others |
Operating system |
Android 7.1 , Ubuntu 16.04 , u-boot |
||
Ordering lnformation
|
Part Number |
Description |
|
CATPC043HW104-V2 |
43" Slim Design Infrared Touch Tablet PC with RK3399 Six-Core ARM® 64-bit processor |
|
CATPC055HW104-V2 |
55" Slim Design Infrared Touch Tablet PC with RK3399 Six-Core ARM® 64-bit processor |
|
CATPC065HW104-V2 |
65" Slim Design Infrared Touch Tablet PC with RK3399 Six-Core ARM® 64-bit processor |
Future of Touch Android Tablet
Industrial rugged Android tablets come with touchable panels offer IP65-67 protection ratings, and feature high-brightness screens that support glove operation. These devices are increasingly integrating artificial intelligence capabilities, leveraging processors to play an increasingly role in fields such as industries, logistics, utilities, and manufacturing.
