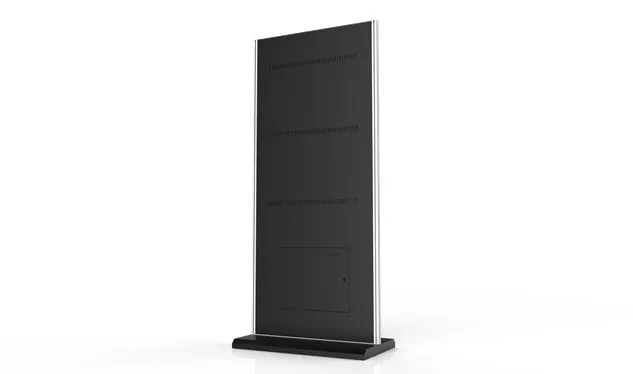

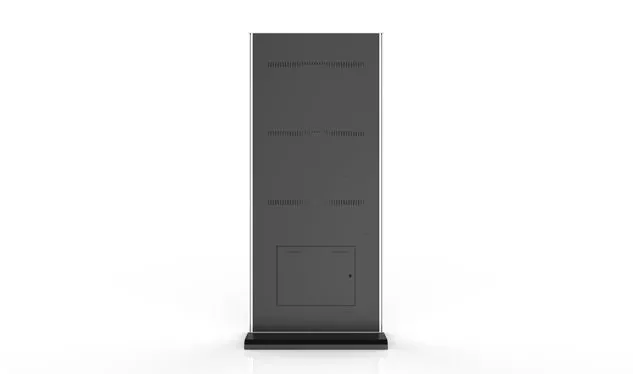

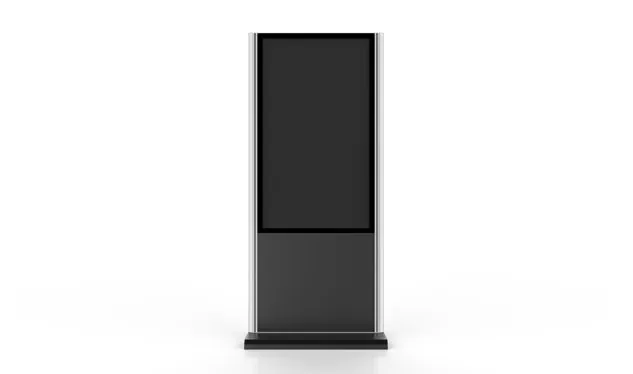

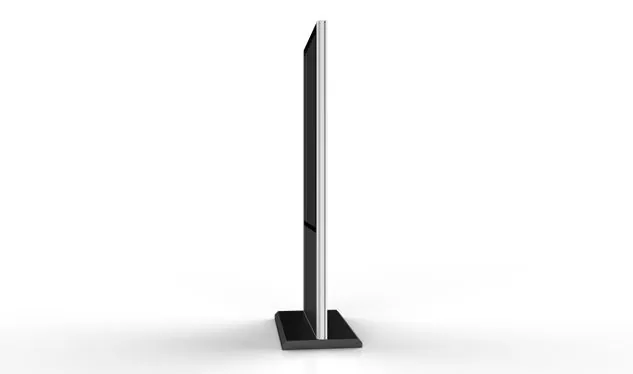

Touch Screen Totem

Model

CTPC055DR004

CTPC065DR004

Processor system

CPU

Intel® Core processor I5-6360U

Frequency

Dual core 2.0 GHz

L2 Cache

4MB

System Chipset

N/A

BIOS

AMI 64Mb Flash ROM

Memory

Technology

DDR3L 1333 MHz SDRAM

Max. Capacity

8GB

Socket

1(204-pin SO-DIMM)

Display

Screen size

55 inch

65 inch

Resolution

3840(RGB)×2160  [UHD]  80PPI

3840(RGB)×2160   (UHD)  68PPI

Brightness

500 cd/m² (Typ.)

500 cd/m² (Typ.)

Contrast ratio

1100:1 (Typ.) (TM)

1100 : 1 (Typ.) (TM)

Support color

1.07B

1.07B   68% NTSC

Response time

8 (Typ.)(G to G)

8 (Typ.)(G to G) ms

Viewing angle

89/89/89/89 (Min.)(CR≥10)

89/89/89/89 (Min.)(CR≥10)

Lamp Type

WLED , 50K hours

WLED , 50K hours

Touch Screen

Type

NAMI Capacitive touch screen

Touch point

10 points touch

Surface Hardness

7H

Durability

Unlimited

Transparency

>93%

Graphics

Chipset

Integrated Intel® HD Graphics 540

Interface

1*VGA,1*support dual channel 24bit LVDS,1*HDMI

Ethernet

Controller

Intel® 211AT Gigabit Ethernet, ,support Wake On LAN / PXE

Interface

2*RJ45

Audio

Chipset

Integrated ALC662 6-channel high fidelity audio controller

Connector

MIC, Line_out

Storage

mSATA

1*mSATA slot,support WIFI、SSD, SSD transmission rate up to 6Gbps

SATA

1* SATA3.0 HDD port, transmission rate up to 6Gbps

JSATA

1* JSATA pin HDD port 2*5pin , (optional with 7pin SATA port)

Expansion

Connector

1* MPCIE slot,support WIFI,USB WIFI,3G module

I/O Interface

USB

2* USB 3.0

HDMI

1

VGA

1

 Gigabit LAN port

2*RJ45

 Line out (green)

1

Power

1* 12V DC_JACK input

Switch

1* Power switch, 1* Reset switch (front panel)

Built-in I/O

Serial connectors

6* RS232 COM port, COM2 support 485/422 function

USB

6* USB 2.0 port 2*5pin

Others

1* SIM socket

GPIO

connector

Support 4 ways input output GPIO

Watchdog

Type

Support hardware reset function(L256, 0~255 seconds)

Power

Power supply voltage

100V-240V

Power consumption(Typical)

135W

190W

Power consumption(Stand by.)

≦1W

≦1W

Environment

Working temperature(℃)

 -10 ~ +60

Working humidity(RH)

10% - 90%

General

Ingress protection

Front IP65

Front IP65

Dimension(L*W*H)

86.5*6*196

95*6*196

Weight

82kg

135kg

Operating system

Windows 7/8.1/10,Ubuntu14.04

Windows 7/8.1/10,Ubuntu14.04

Part Number

Description

CTPC055DR004-V2

55" Standing free Capacitive Touch Screen Kiosk with Intel® Core processor I5-6360U dual core 2.0 GHz processor

CTPC065DR004-V2

65" Standing free Capacitive Touch Screen Kiosk with Intel® Core processor I5-6360U dual core 2.0 GHz processor
