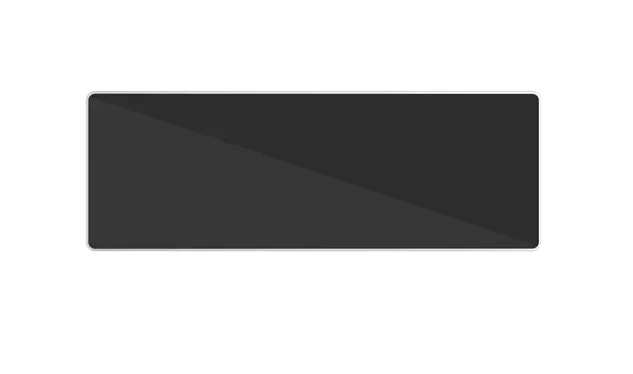

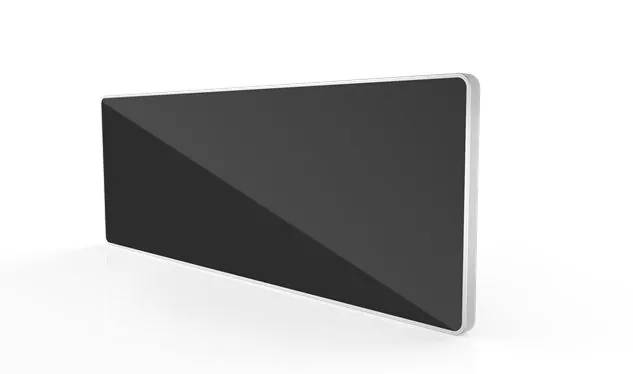

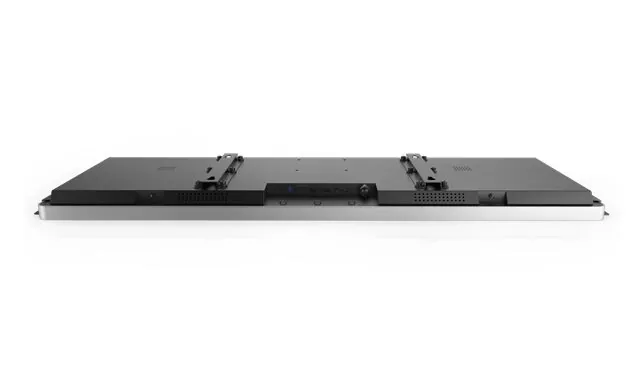

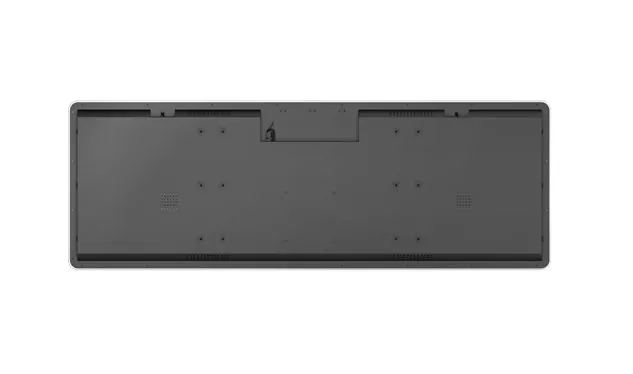

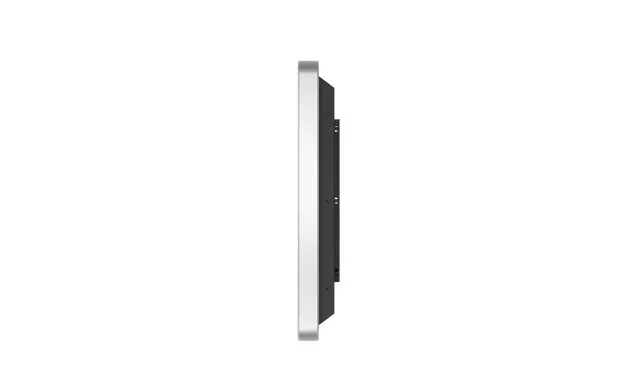

Siyi is a reputable Chinese manufacturer and supplier with years of experience specializing in Ultra Wide Digital Signage production. We hope to establish commercial ties with you. Ultra widescreen native stretched displays
Send Inquiry
Product Description
Siyi is one of professional China Ultra Wide Digital Signage manufacturer and supplier, if you are looking for the Ultra Wide Digital Signage with low price, consult us now!
Specifications
|
Model |
CATPC024CZ101 |
CAPC038CZ101 |
CAPC055CZ101 |
|
|
Processor system |
CPU |
Six-Core ARM® 64-bit processor |
||
|
Frequency |
2.0 GHz |
|||
|
SOC |
Rockchip RK3399 (28nm HKMG Process) |
|||
|
GPU |
Technology |
ARM Mali-T860 MP4 Quad-Core GPU |
||
|
Capability |
Completely compatible with OpenGL ES1.1/2.0/3.0/3.1, OpenCL and DirectX 11.1 |
|||
|
AFBC |
Support |
|||
|
Display |
Screen size |
24 inch |
38 inch |
55 Inch |
|
Resolution |
1920(RGB)×360 |
1920(RGB)×560 |
1920(RGB)×317 |
|
|
Brightness |
700 cd/m² (Typ.) |
700 cd/m² (Typ.) |
600 cd/m² (Typ.) |
|
|
Support color |
16.7M |
16.7M |
1.07B |
|
|
Contrast |
1000:1 |
4000:1 |
5000:1 |
|
|
Viewing angle |
85/80/88/85 (Min.)(CR≥10) |
88/88/88/88 (Min.)(CR≥10) |
89/89/89/89 (Min.)(CR≥10) |
|
|
Lamp Type |
WLED, >30K hours |
WLED, >30K hours |
WLED, >30K hours |
|
|
Memory |
Technology |
Dual-Channel DDR3 |
||
|
max |
32GB |
|||
|
Network |
Ethernet |
10/100/1000Mbps Ethernet |
||
|
WIFI |
2.4GHz/5GHz dual band WIFI, supports Wi-Fi 802.11b/g/n/ac |
|||
|
Bluetooth |
V2.1+EDR/Bluetooth 3.0/3.0+HS/4.0 |
|||
|
4G |
LTE-TDD/LTE-FDD/TD-SCDMA/EDGE/GPRS/GSM(optional) |
|||
|
Audio |
Connector |
1 x Analog audio (via 3.5mm Combo Audio Jack for audio input and ouput) |
||
|
1 x LINEOUT for audio output |
||||
|
Display |
HDMI |
1 x HDMI 2.0 , Support maximum 4K*2K@60Hz display |
||
|
4K/2K |
1 x V-BY-ONE , Support 4K2K @60Hz |
|||
|
eDP |
1 x eDP 1.3 ( 4 lanes with 10.8Gbps ) |
|||
|
Built-in I/O Interface |
USB |
6*USB-2.0 HOST , 1*USB3.0 HOST , 1*USB3.0 Type_C |
||
|
HDMI |
1*HDMI IN |
|||
|
PCIe |
1*Mini PCIe( 4G LTE) , 1*PCIe_1.27 host |
|||
|
SIM |
1*SIM card slot |
|||
|
Press buttons |
1*Reset, 1*Power, 1*Upgrade |
|||
|
Serial connectors |
4*RS232 , 1*UART TTL |
|||
|
IO |
4*IO |
|||
|
Wigan interface |
2*Wigan |
|||
|
Watchdog |
Type |
support software watch dog |
||
|
Power |
Power supply voltage |
100V-240V |
100V-240V |
100V-240V |
|
Power consumption(Typical) |
30W |
70W |
115W |
|
|
Power consumption(Stand by.) |
≦1W |
≦1W |
≦1W |
|
|
Environment |
Working temperature(℃) |
0 ~ +50 |
||
|
Working humidity(RH) |
10% - 90% |
|||
|
Others |
Operating system |
Android 7.1 , Ubuntu 16.04 , u-boot |
||
Ordering lnformation
|
Part Number |
Description |
|
CATPC024CZ101-V1 |
24 Inch Super Slim Design Ultra Wide Advertising Player with RK3399 Six-Core ARM® 64-bit processor |
|
CAPC038CZ101-V1 |
38 Inch Super Slim Design Ultra Wide Advertising Player with RK3399 Six-Core ARM® 64-bit processor |
|
CAPC055CZ101-V1 |
55 Inch Super Slim Design Ultra Wide Advertising Player with RK3399 Six-Core ARM® 64-bit processor |
